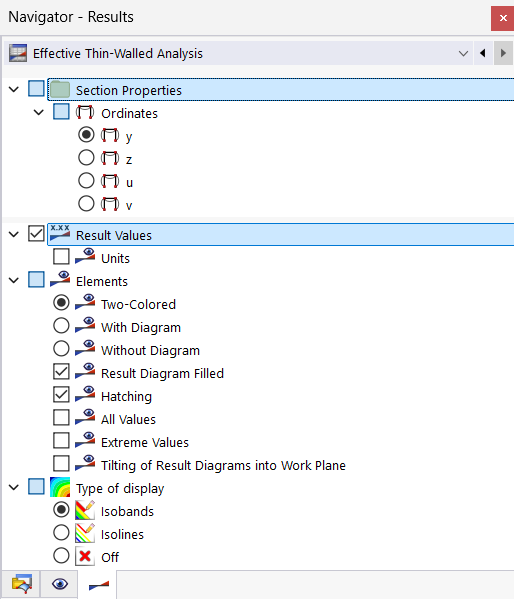

For the design with 'Analysis of Thin-Walled Structures' or 'Effective Analysis of Thin-Walled Structures', the results are displayed on the elements. In the 'Navigator - Results', you can control which results are shown in detail, whether result values are displayed on the elements, and in which form they are output.
Result Values
You can show or hide the result values and their units using these check boxes.
Elements
In the two-color display, positive results are shown in red and negative results in blue by default. You can adjust the color assignment in the Display Properties.
If the results are displayed with or without diagram, the color assignment is based on the scale in the Control Panel.
Display Model
The results can be displayed as isosurfaces or isolines, where the color assignment is based on the scale in the Control Panel. For the 'Off' display model, the results are displayed according to the setting for elements.
