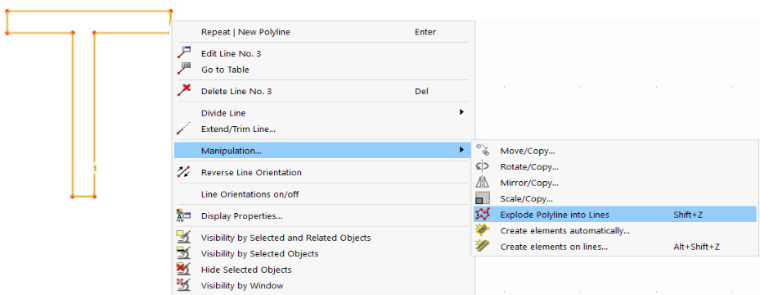

You can subsequently explode a polyline into individual lines. To do this, right-click the line to open the object's shortcut menu. Here, you can select the Explode Polyline into Lines function.
Alternatively, select the line and click the Explode Polyline into Lines function in the menu Tools → Modify Lines. You can also use the
button in the CAD toolbar.
