Design Surfaces

Construction surfaces allow you to create surfaces and assign them to layers, as in a CAD program. These surfaces make it easier to construct model objects.

Various types of planar and spatial construction surfaces are available for selection in the Navigator context menu (see image Setting Construction Line Using Context Menu) and in the list button of the toolbar.

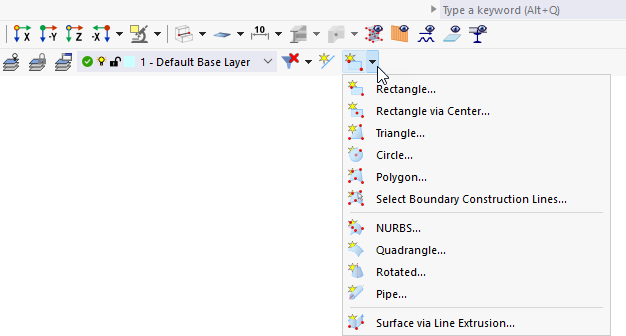

Set Construction Surface Graphically Using Button

You can define construction surfaces in the same way as the corresponding "real" surfaces of the model.
