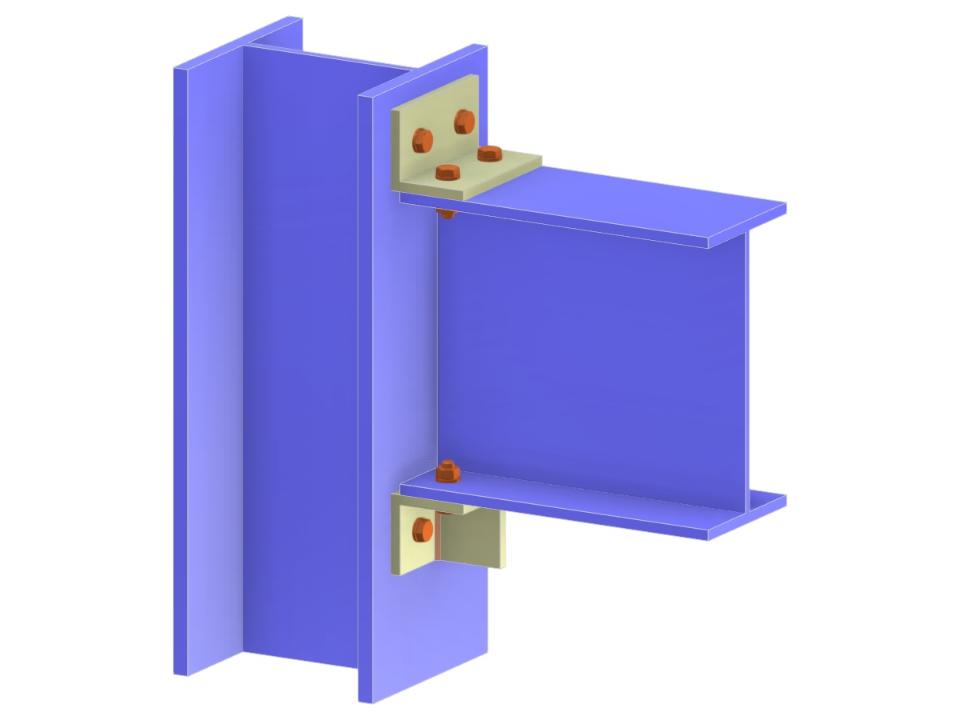

This model demonstrates a structural connection where a beam is bolted to a column flange using cleats. It incorporates bolted beam flanges and simulates a pinned beam connection. The setup is typical for scenarios requiring rotational flexibility while maintaining secure mechanical fastening.
Beam to Column Flange Connection via Cleats
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.043 tons |
| Dimensions (Metric) | 0.460 x 0.350 x 0.000 m |
| Dimensions (Imperial) | 1.51 x 1.15 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
