This model illustrates the structural connection between a column and a continuous beam with a welded flange and a pinned connection at the column. Such designs are common in steel construction to accommodate load transfer efficiently while allowing some flexibility in rotation at the joint. The model assists in analyzing forces and moments within these elements, enabling optimization of structural integrity and connection design.

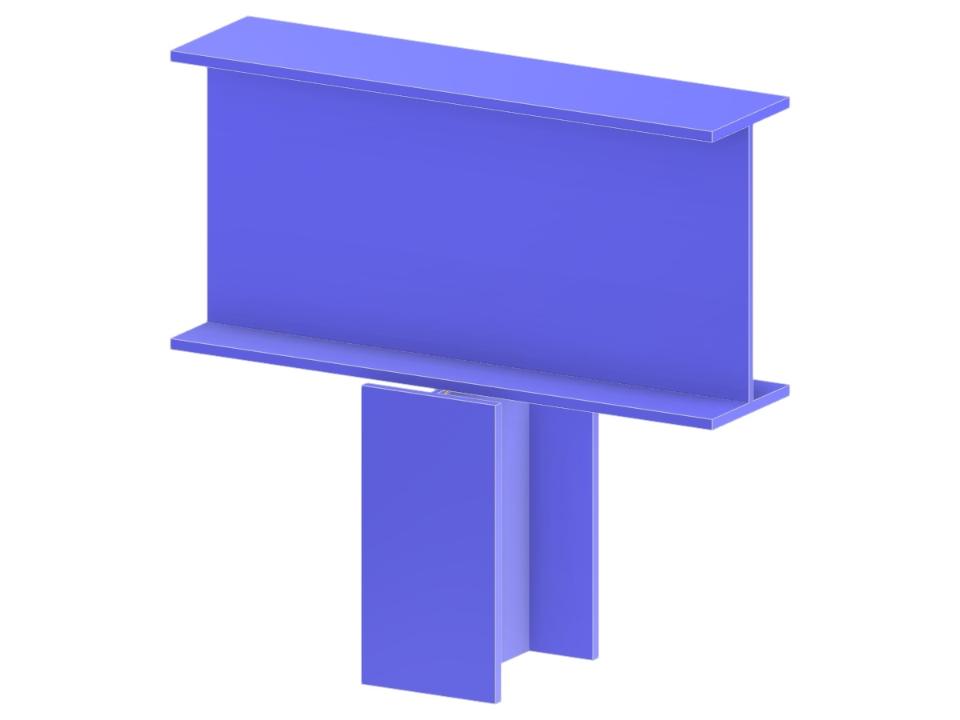

Column to Beam Flange Welded Connection
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.043 tons |
| Dimensions (Metric) | 0.640 x 0.470 x 0.000 m |
| Dimensions (Imperial) | 2.1 x 1.54 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
