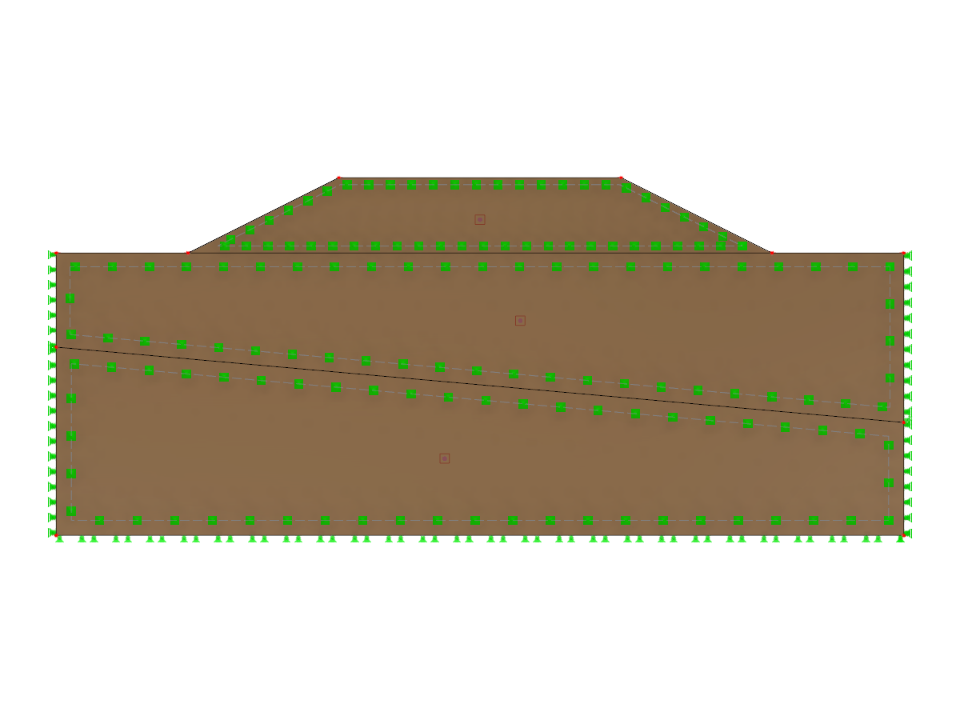

Solid model of a road embankment with multiple sloped base layers, defined through parametric dimensions. The model represents a multi-layered soil structure beneath an embankment, allowing for systematic variation of geometry and material boundaries. It is suited for geotechnical analysis workflows where the interaction between the embankment and underlying soil strata is of interest.
Road Embankment With Multiple Sloped Base Layer Soil
| Block parameters editable dynamically | |
| Number of Nodes | 20 |
| Number of Lines | 34 |
| Number of Members | 0 |
| Number of Surfaces | 18 |
| Number of Solids | 3 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1542.400 tons |
| Dimensions (Metric) | 45.000 x 19.000 x 1.000 m |
| Dimensions (Imperial) | 147.64 x 62.34 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
