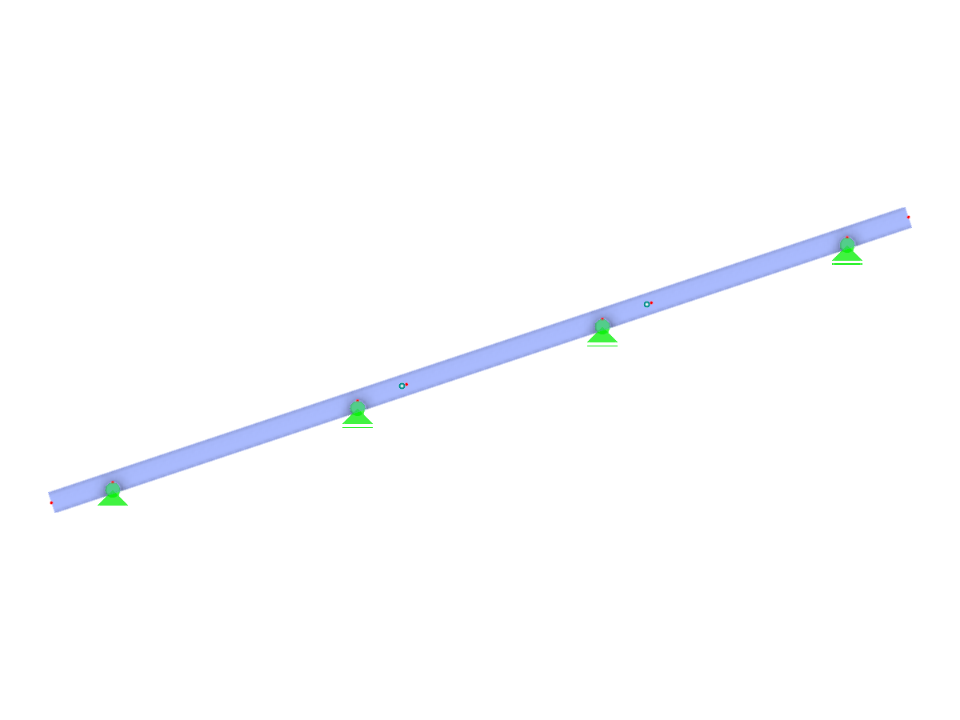

This model features an inclined continuous beam with inserted hinges, also known as a Gerber beam design. The first bay is constructed without a hinge, while the succeeding sections each contain one hinge. Additionally, the structure includes overhanging ends, providing a comprehensive view of its dynamic response under load conditions. This setup demonstrates efficient support distribution along the beam.
Inclined Continuous Beam with Hinges Structure
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.138 tons |
| Dimensions (Metric) | 7.000 x 2.333 x 0.000 m |
| Dimensions (Imperial) | 22.97 x 7.65 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
