Answer:
It is necessary to explicitly select results before printing them.

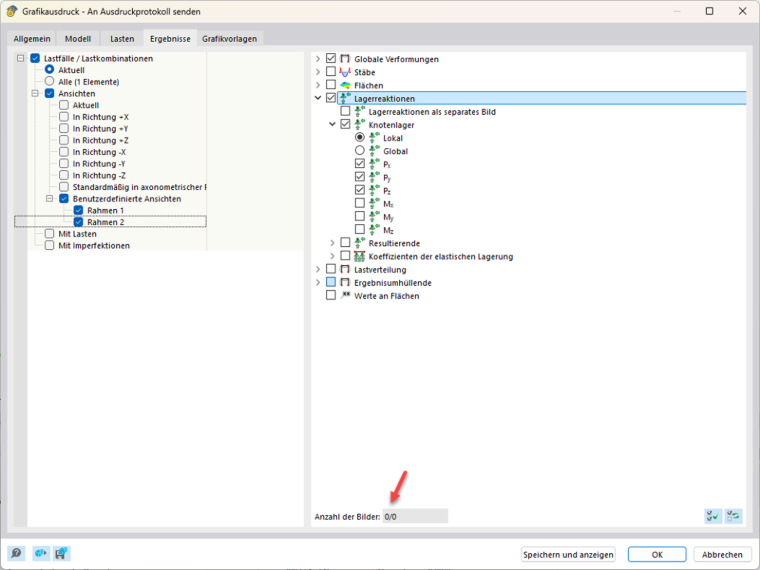

You can verify your selection using the corresponding display at the bottom of the dialog box.
Simply activating the support forces is not sufficient for this purpose. This option merely causes the support reactions to be displayed in the graphic in addition to the
internal forces.

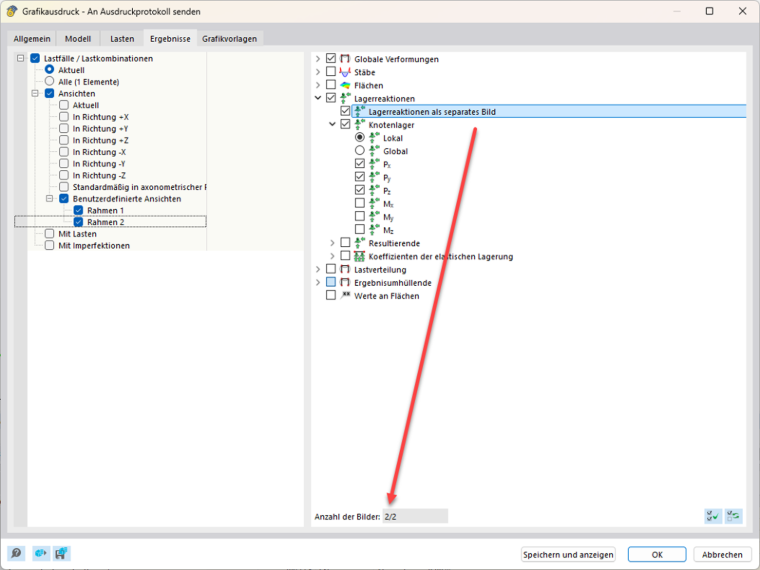

If you want to display only the support forces, you also need to activate the “Support reactions as separate image” option.
