Answer:
In the RF‑/TIMBER Pro add-on module, you can perform the shear force reduction for Eurocode 5 (EN 1995‑1‑1).
The regulations for the reduction are only covered in the following National Annexes:
- DIN EN NCI 6.1.7 (NA.5)
- ÖNORM EN 6.1.7(2)
- SFS EN RIL 205-1-2009, 6.1.7
Therefore, the provisions of DIN EN are used for all other National Annexes by default!

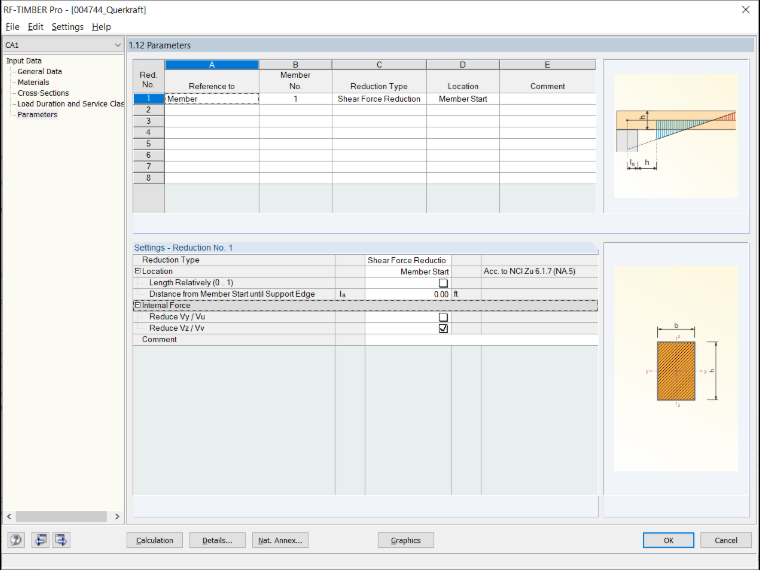

It is possible to determine the width of the support using the distance from a member start to a support edge ls.
