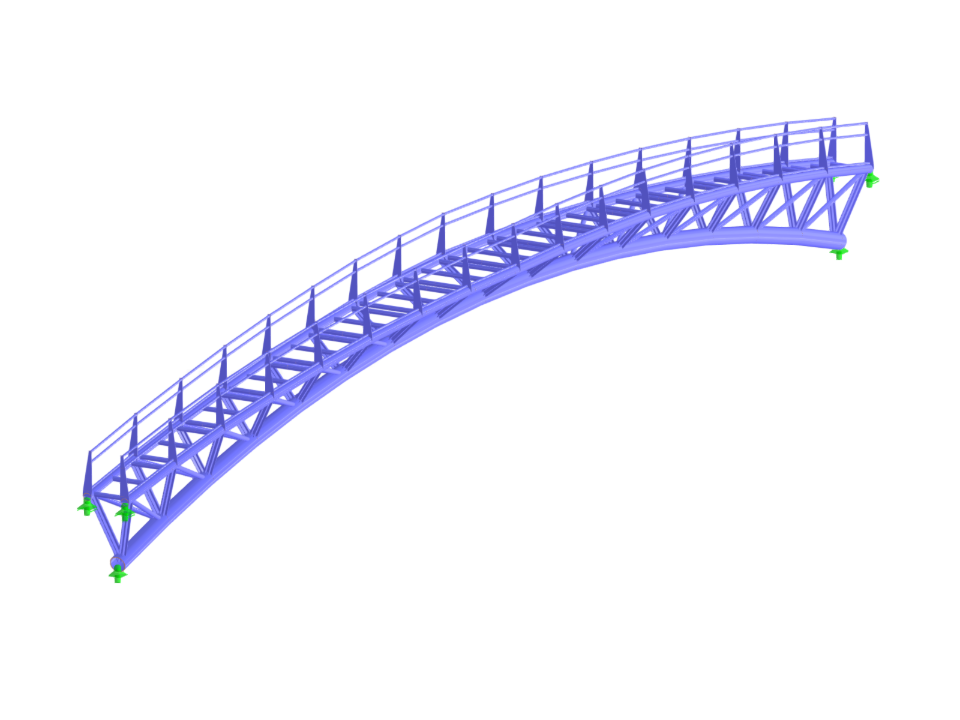

The supporting structure consists of an arch-shaped main beam with truss braces and secondary beams as well as lateral railings. The model illustrates the geometric structure and the static modeling of the bridge in RFEM.
Model Used in
Pedestrian bridge in steel, Italy
No Download Possible
Customer Project / View Only
| Number of Nodes | 333 |
| Number of Lines | 532 |
| Number of Members | 532 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 188 |
| Number of Result Combinations | 0 |
| Total Weight | 55.904 t |
| Dimensions (Metric) | 3.000 x 6.557 x 51.087 m |
| Dimensions (Imperial) | 9.84 x 21.51 x 167.61 feet |
