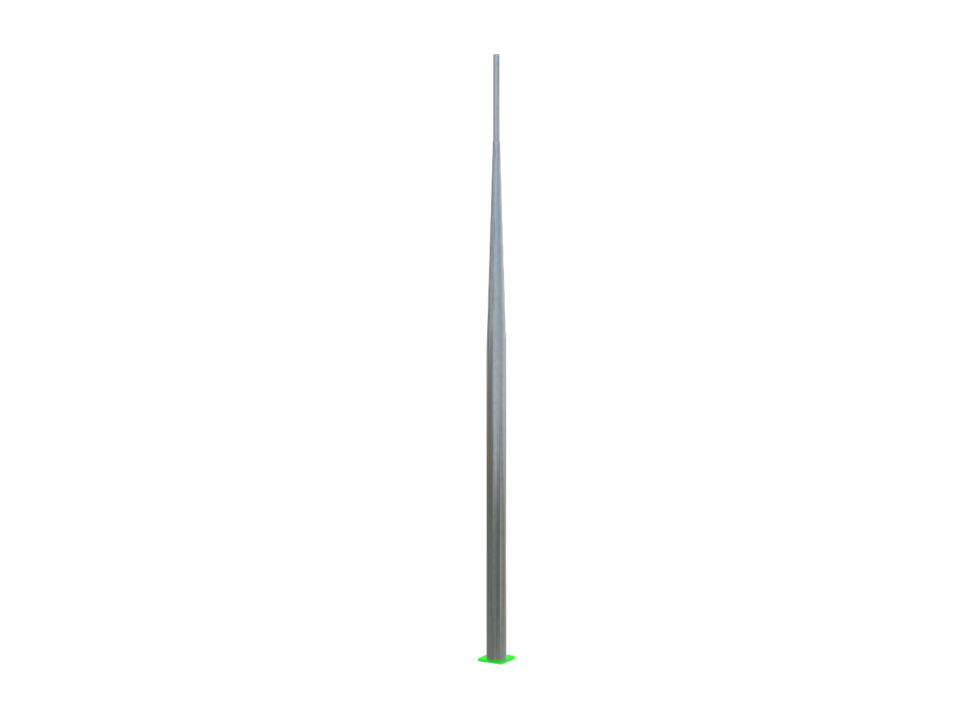

The Bachelor’s thesis by Evgenia Rustamova focuses on the design of a tall steel antenna mast. The model was created in RFEM 6 and includes the design of global load-bearing capacity, local stability, and assembly connections. Modal analysis and wind load analysis, including dynamic effects, were performed. Special attention was paid to key details, such as joints and foundation anchors. The model is part of the Dlubal Talent CTU competition.
Model Used in
Single-Pole Steel Antenna Mast
| Number of Nodes | 7 |
| Number of Lines | 6 |
| Number of Members | 6 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 14 |
| Number of Result Combinations | 0 |
| Total Weight | 9,066 t |
| Dimensions (Metric) | 0,000 x 35,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 114.83 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
