The membrane arch structure represents an innovative application in civil engineering practice. This structure is characterized by its efficiency and aesthetic appeal. It utilizes the tensile properties of membrane materials and provides considerable stability with minimal material consumption. The use of such structures is widespread worldwide and results in durable, environmentally friendly structures.

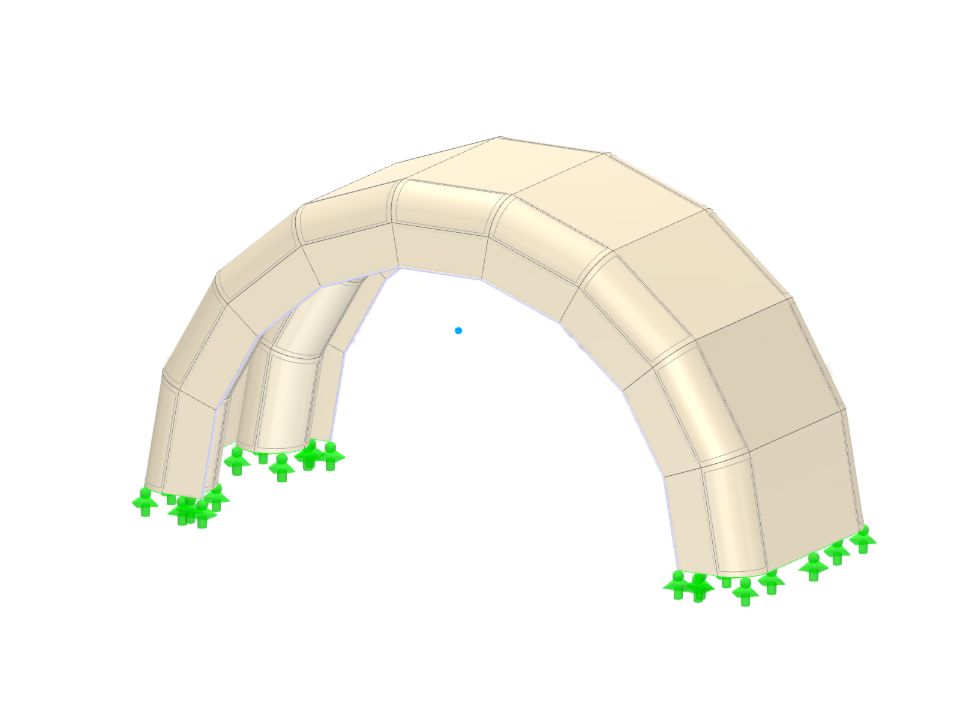

Membrane Arch Structure
| Number of Nodes | 120 |
| Number of Lines | 218 |
| Number of Members | 18 |
| Number of Surfaces | 103 |
| Number of Solids | 2 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.023 t |
| Dimensions (Metric) | 3.900 x 1.920 x 1.400 m |
| Dimensions (Imperial) | 12.8 x 6.3 x 4.59 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
