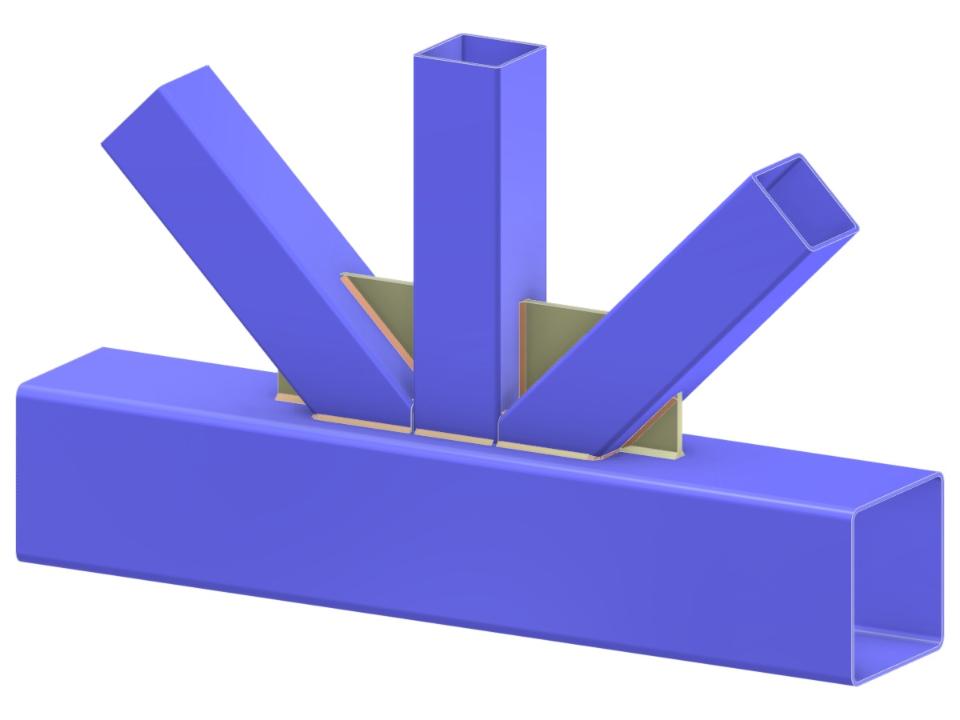

A detailed model featuring a truss with diagonals and vertical elements connected to the chord using notched stiffeners. The KT-joint is welded and uses rectangular hollow sections (RHS). This configuration provides structural efficiency for various load conditions.
Truss KT-Joint | Diagonals and Vertical to Chord Connection with Gusset Plate
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.071 tons |
| Dimensions (Metric) | 1.160 x 0.580 x 0.000 m |
| Dimensions (Imperial) | 3.81 x 1.9 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
