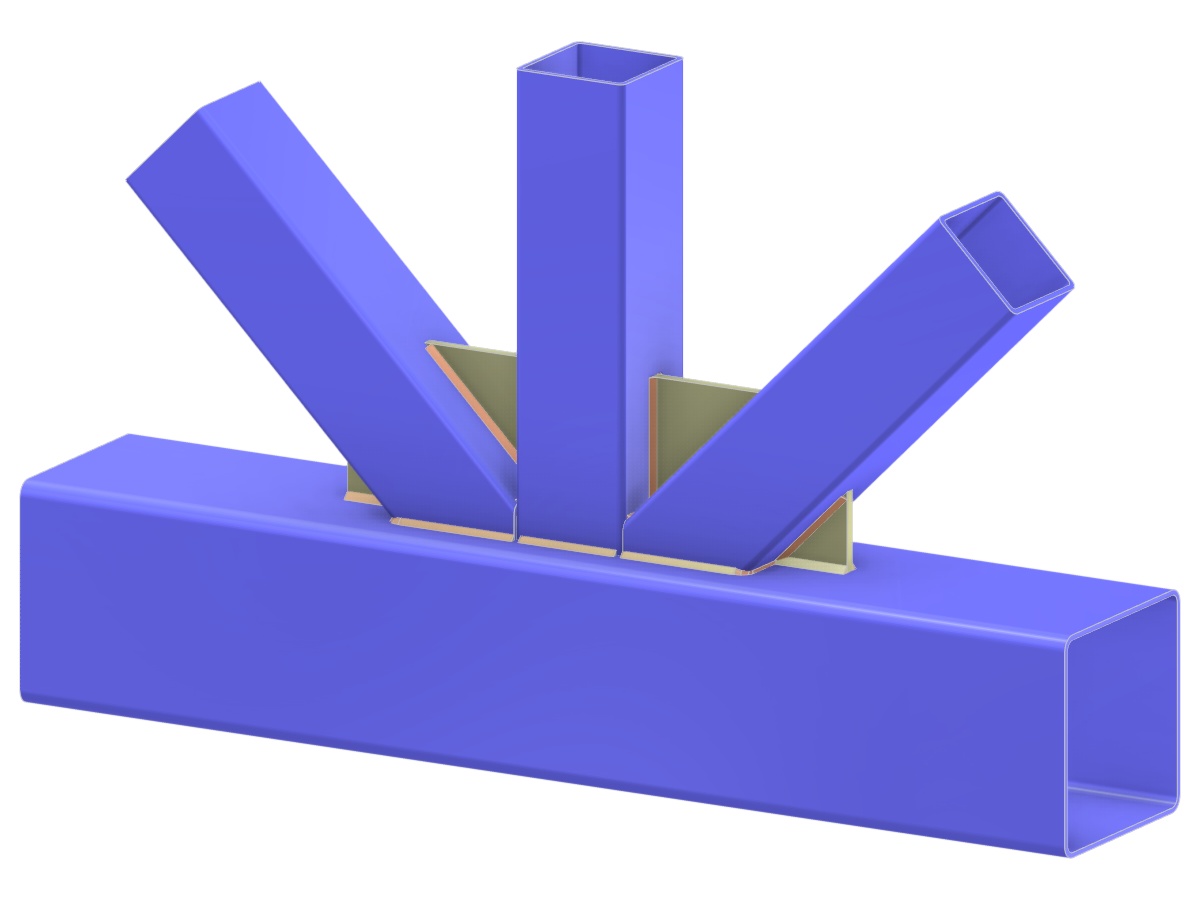

Model 005326 | Truss KT-Joint | Diagonals and Vertical to Chord Connection with Gusset Plate
3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.071 tons |
| Dimensions (Metric) | 1.160 x 0.580 x 0.000 m |
| Dimensions (Imperial) | 3.81 x 1.9 x 0 feet |
