The truss model features a configuration with diagonals and verticals connected to chords using notched stiffeners in an N-joint configuration. The joints are welded, and the structure utilizes hollow cross-sections made of rectangular hollow sections (RHS). This setup is commonly applied in designs requiring rigid and stable connections for structural efficiency. Hollow cross-sections offer an effective balance between strength and weight, suitable for varied engineering applications.

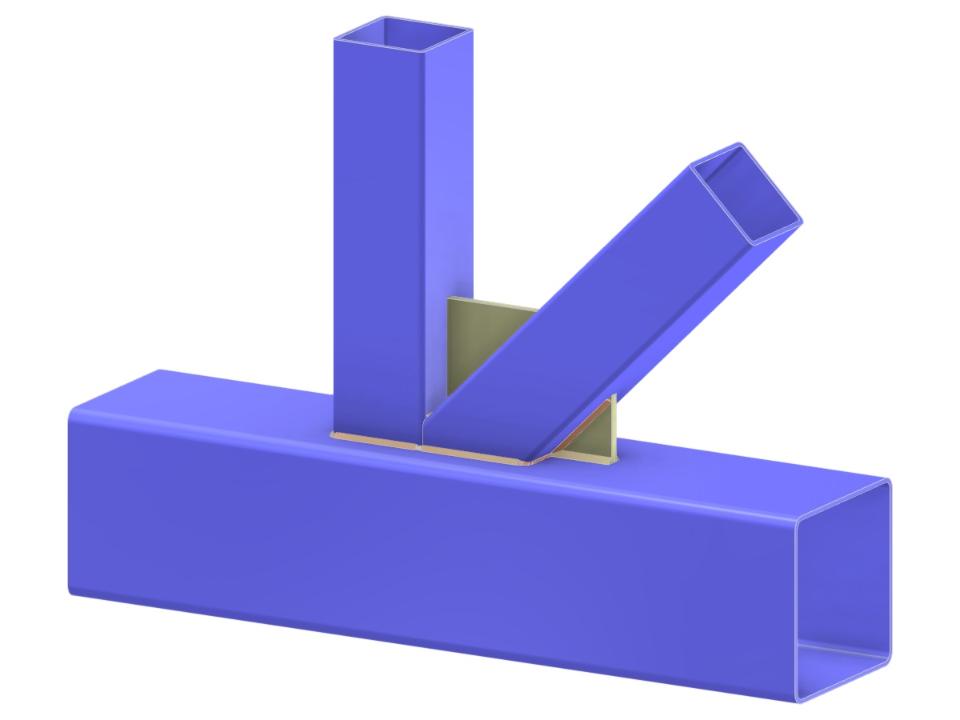

Truss N-Joint | Diagonal and Vertical to Chord Connection with Gusset Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.053 tons |
| Dimensions (Metric) | 0,960 x 0,580 x 0,000 m |
| Dimensions (Imperial) | 3.15 x 1.9 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
