This model showcases a truss featuring N-joint connections with gusset plates. The diagonal and vertical elements are connected to the chord using a notched tongue plate and bolted assembly. The design uses hollow cross-sections with RHS-profiles and an H-profile, providing a robust and efficient structural solution. Ideal for analyzing connections in trusses, this model aids in understanding bolted joint behavior in complex assemblies.

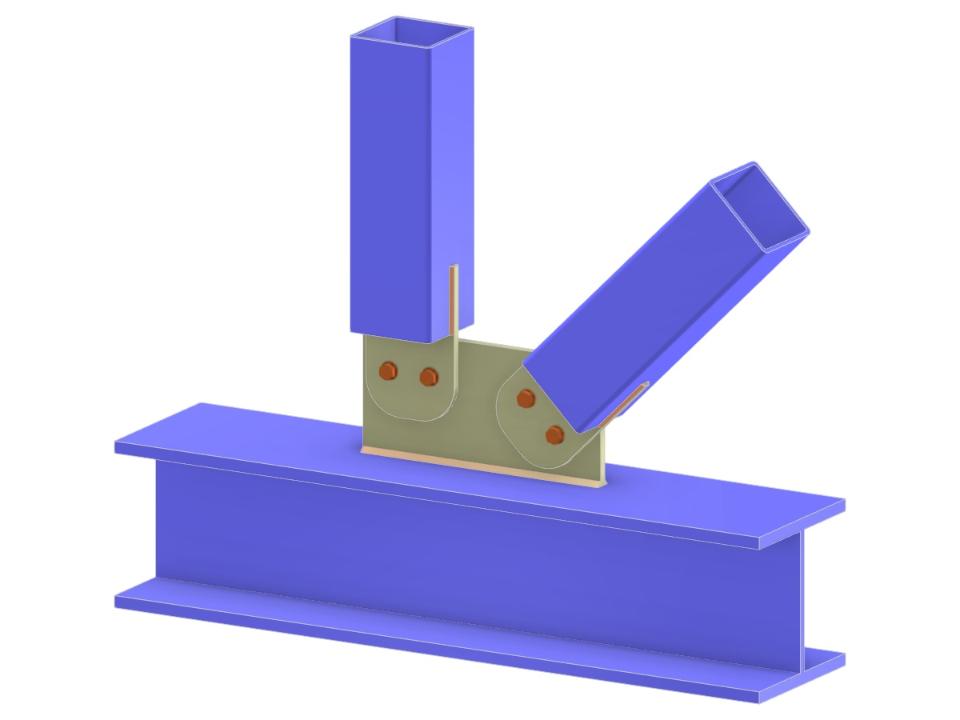

Truss N-Joint | Diagonal and Vertical to Chord Connection via Gusset Plate and Tongue Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.092 tons |
| Dimensions (Metric) | 0.960 x 0.680 x 0.000 m |
| Dimensions (Imperial) | 3.15 x 2.23 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
