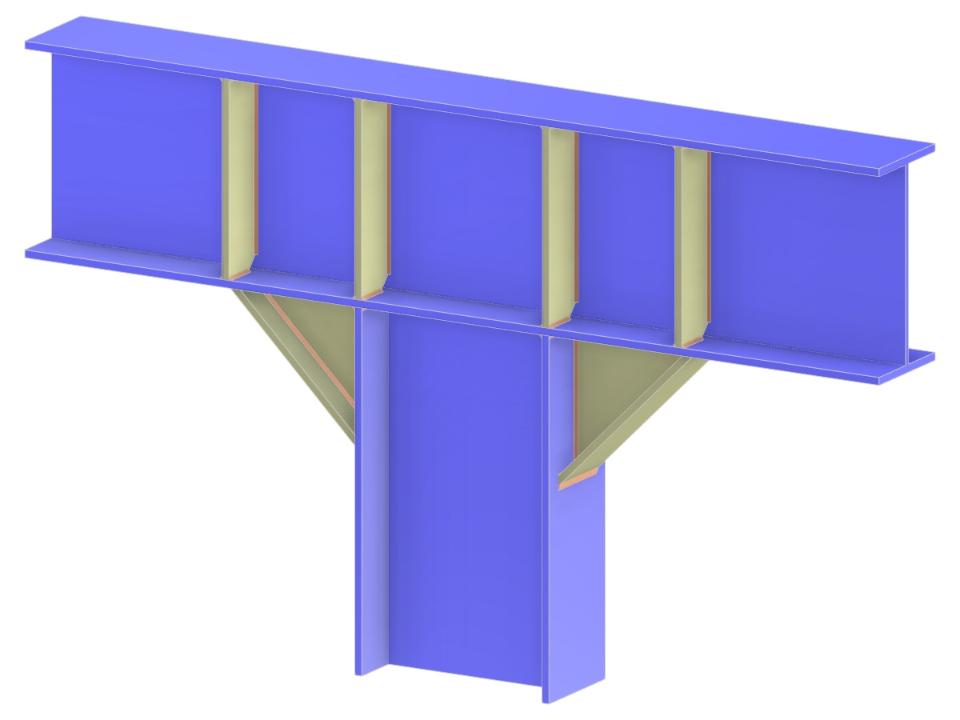

This model illustrates a detailed column-to-beam connection featuring a continuous beam, bottom flange, and haunch design. Top of the column is directly welded to bottom flange of the beam. To increase bending moment resistance of the joint, beam is provided with haunches and web stiffeners. Connection is characterized by welded joints and a fixed column configuration, showcasing advanced structural integrity and stability. These features are crucial for ensuring robust performance in complex load scenarios.
Column to Beam Flange Connection with Haunch
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.081 tons |
| Dimensions (Metric) | 1.320 x 0.660 x 0.000 m |
| Dimensions (Imperial) | 4.33 x 2.17 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
