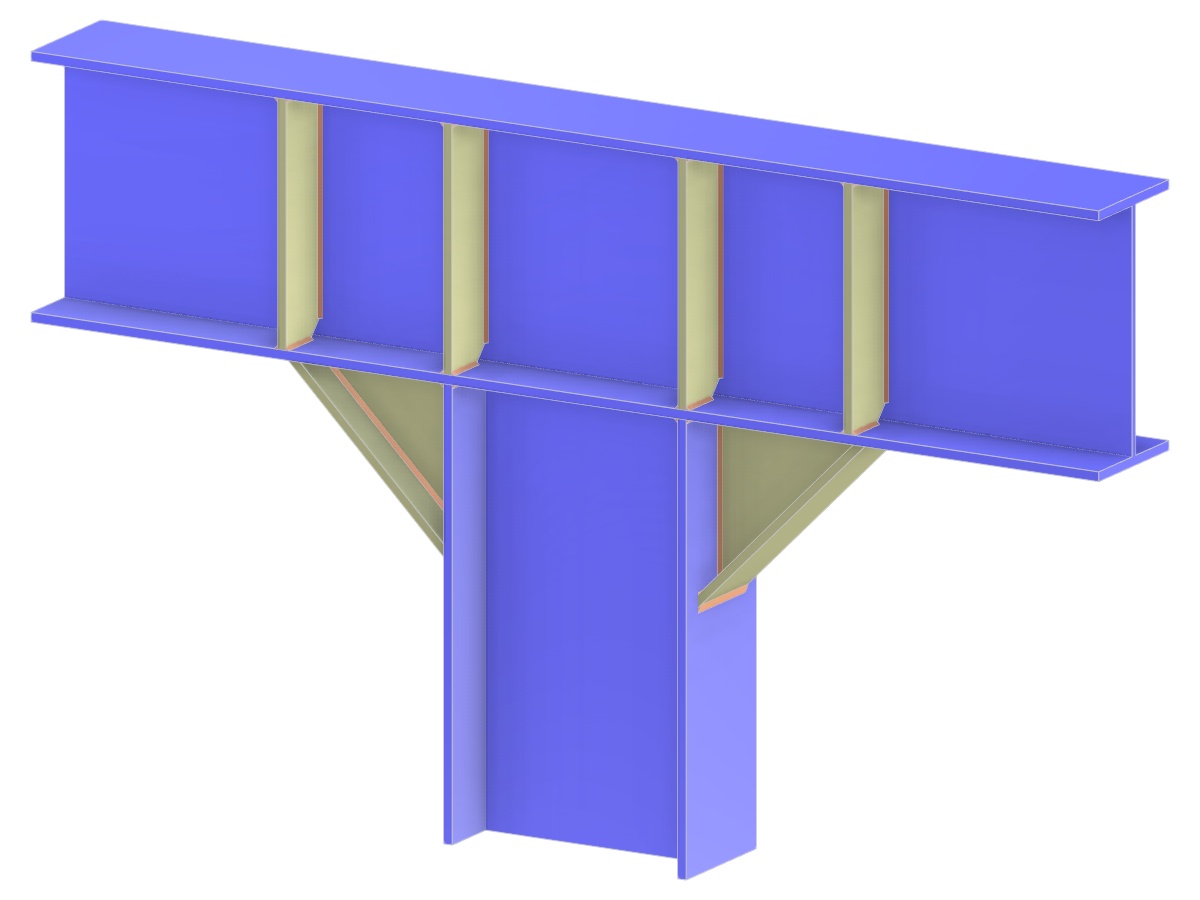

Model 005190 | Column to Beam Flange Connection with Haunch
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.081 tons |
| Dimensions (Metric) | 1.320 x 0.660 x 0.000 m |
| Dimensions (Imperial) | 4.33 x 2.17 x 0 feet |
