This model demonstrates a sophisticated connection of a column to a continuous beam using a full-depth end plate and welded beam stiffeners. The configuration includes a fixed column base ensuring robust structural integrity. Designed for complex engineering scenarios, this setup highlights the benefits of integrating welded elements for resilience and durability. Such configurations are essential in achieving stable load-bearing capacities in various structures.

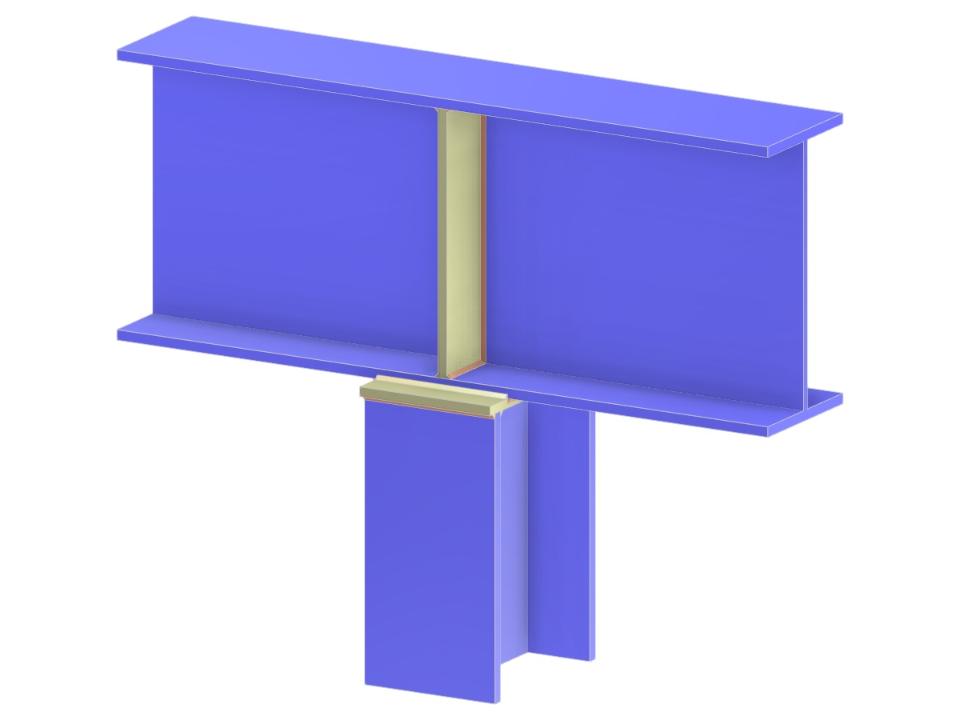

Column to Beam Flange Connection via Full-Depth End Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.049 tons |
| Dimensions (Metric) | 0.800 x 0.470 x 0.000 m |
| Dimensions (Imperial) | 2.62 x 1.54 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
