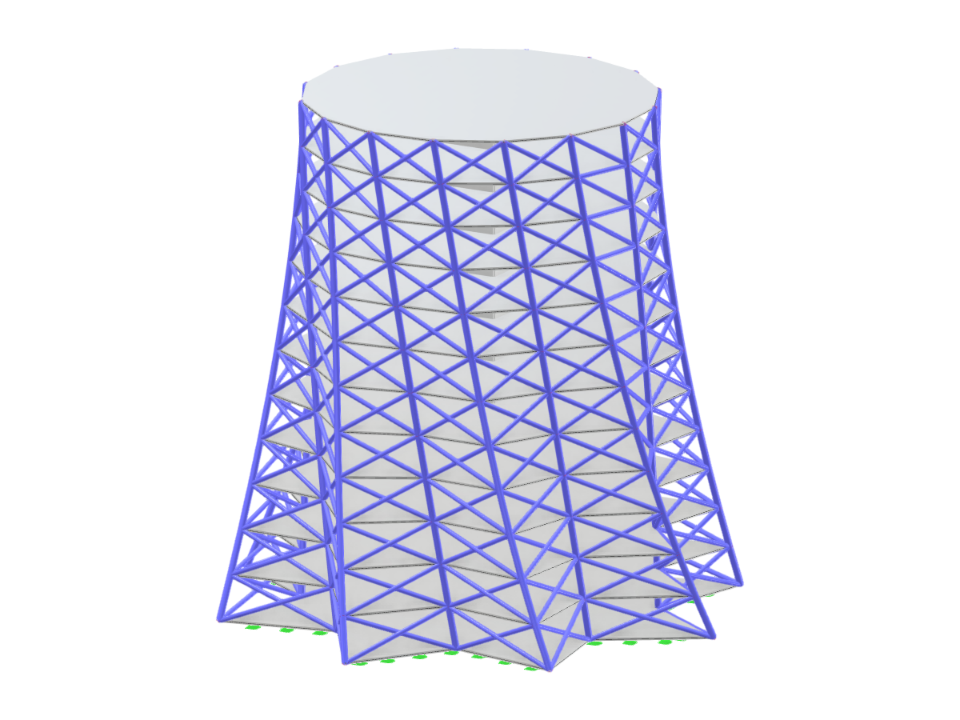

This model features a tower with a parametric number of polygon star sides at the base. It includes a variable radius from bottom to top height and a general rotation of the structure from basement to top, allowing for unique architectural configurations and structural analysis.
Tower with Variable Polygon Star and Rotation
| Block parameters editable dynamically | |
| Number of Nodes | 260 |
| Number of Lines | 872 |
| Number of Members | 576 |
| Number of Surfaces | 61 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3880.979 tons |
| Dimensions (Metric) | 36.000 x 35.000 x 36.000 m |
| Dimensions (Imperial) | 118.11 x 114.83 x 118.11 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
