Tower Structure with Parametric Design Features

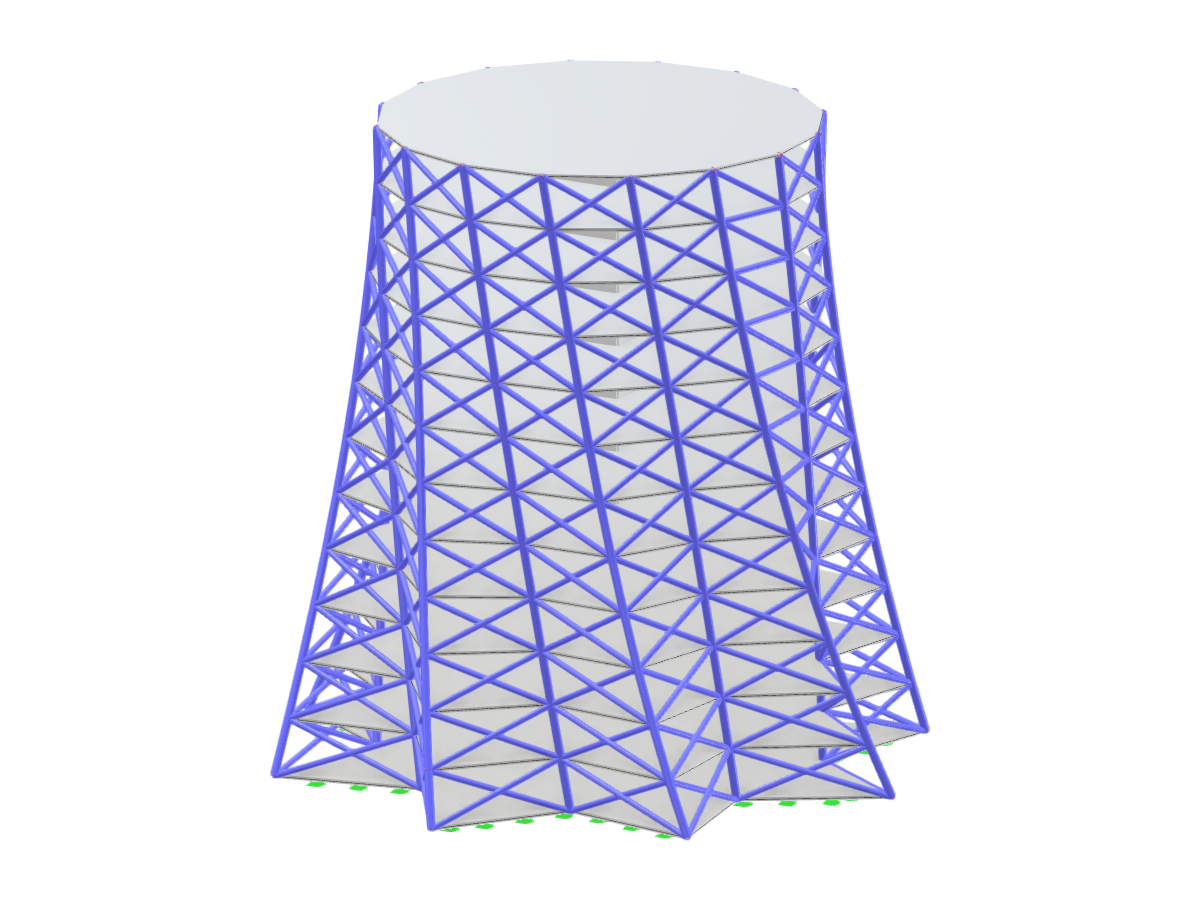

A tower with a parametric design showcasing a polygon star base and varying radius from bottom to top height, featuring a general structural rotation.
The image depicts a tower designed with parametric features. The structure has a polygon star shape at the base and a radius that varies from the bottom to the top. There is an apparent rotation of the structure's entire height, showcasing advanced design capabilities in structural engineering.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 260 |
| Number of Lines | 872 |
| Number of Members | 576 |
| Number of Surfaces | 61 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3880.979 tons |
| Dimensions (Metric) | 36.000 x 35.000 x 36.000 m |
| Dimensions (Imperial) | 118.11 x 114.83 x 118.11 feet |
