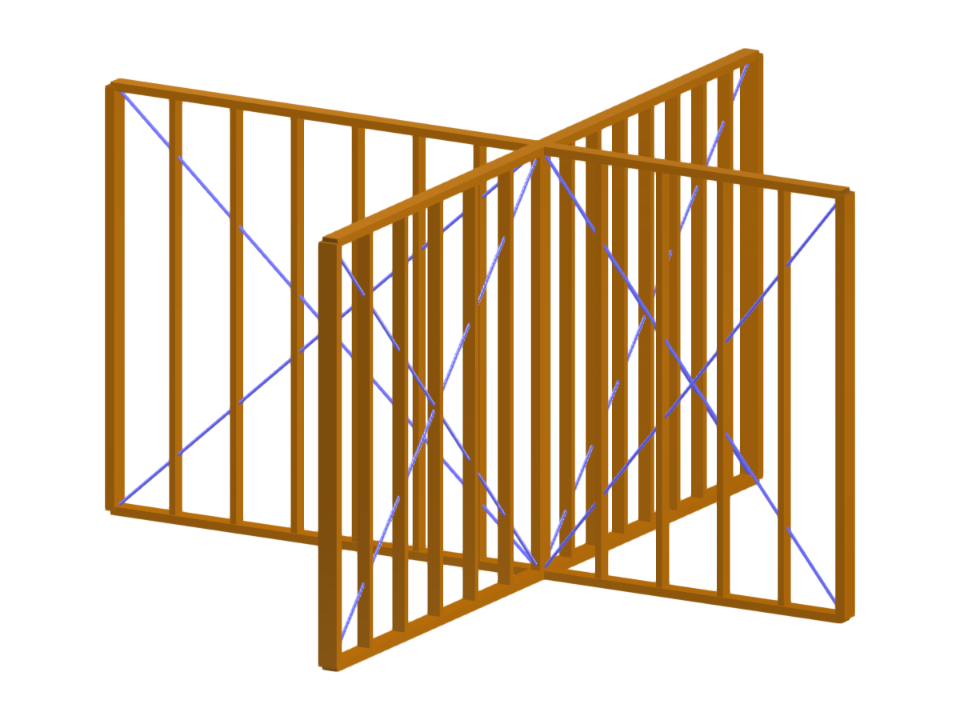

This model represents a prefabricated wooden wall structure showcasing a cross connection between two walls. The design highlights structural integrity and efficient construction methods used in timber construction. The configuration optimizes load distribution across the connection points, emphasizing the modular nature of prefabricated wooden walls.
Prefabricated Wooden Wall Structure
| Block parameters editable dynamically | |
| Number of Nodes | 54 |
| Number of Lines | 43 |
| Number of Members | 43 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.160 tons |
| Dimensions (Metric) | 4.800 x 2.500 x 4.800 m |
| Dimensions (Imperial) | 15.75 x 8.2 x 15.75 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
