This model explores the use of X-bracing, also known as cross-bracing, in steel structures. The model accommodates a variable number of stories and different heights for each floor. It demonstrates how bracing enhances stability and resists lateral forces in multistory buildings. The configuration is ideal for applications where structural integrity and flexibility are required. It's suitable for both analysis and design in structural engineering contexts.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

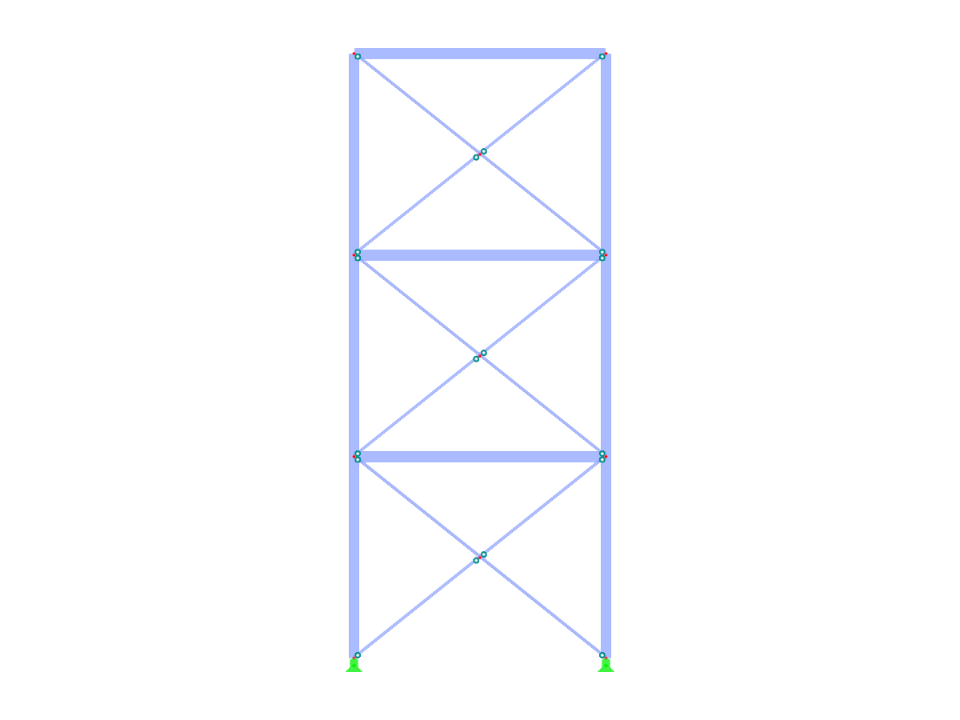

X-Bracing for Steel Structures

Block parameters editable dynamically
Number of Nodes 11
Number of Lines 21
Number of Members 21
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 1
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 1.128 tons
Dimensions (Metric) 5.000 x 12.000 x 0.000 m
Dimensions (Imperial) 16.4 x 39.37 x 0 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
