Steel Structure X-Bracing with Variable Story Heights

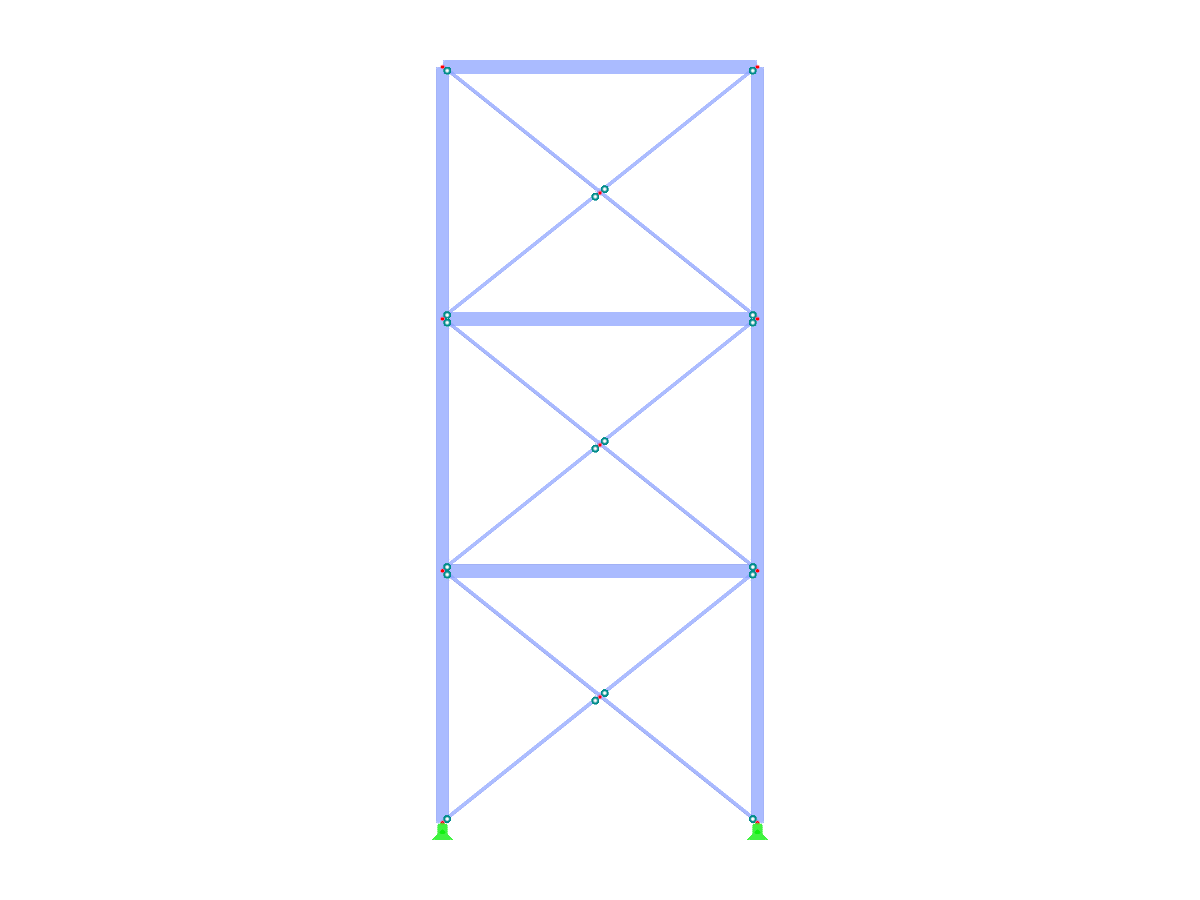

X-bracing system for a steel structure with varying story heights and adjustable floor levels.
The image shows a detailed design of an X-bracing system applied to a steel structure. This system features varying numbers of stories and different floor heights. It demonstrates how cross-bracing can enhance stability and load distribution in multistory steel frameworks. Variable height options allow for flexible architectural designs and structural configurations.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 21 |
| Number of Members | 21 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.128 tons |
| Dimensions (Metric) | 5.000 x 12.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 39.37 x 0 feet |
