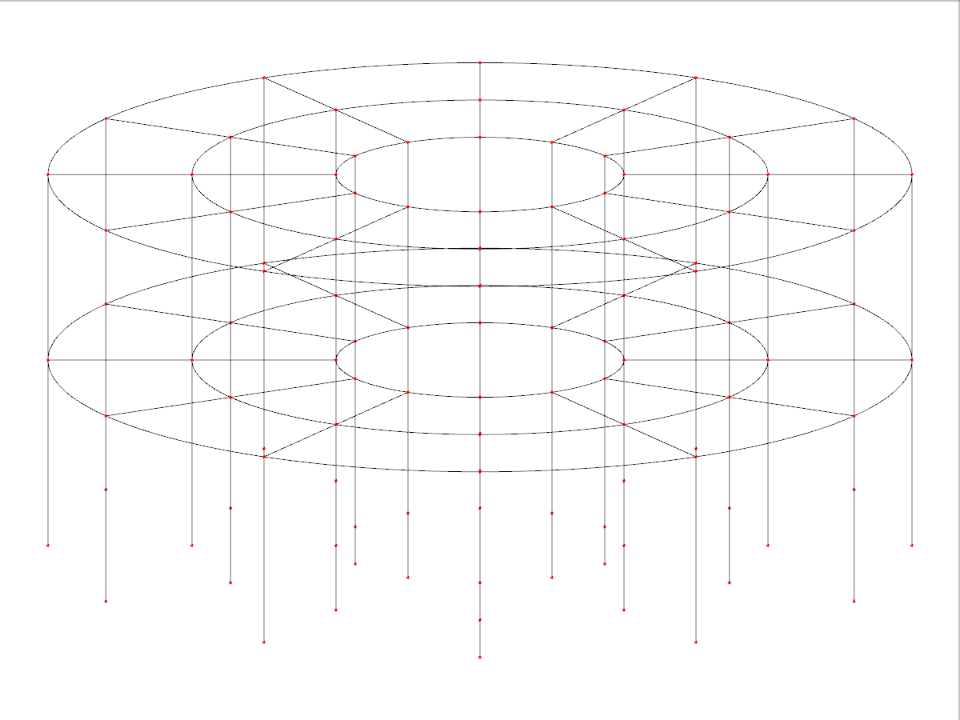

This model represents a 3D grid designed for a circular structure with customizable numbers of floors and variable row radius. It is ideal for architectural and engineering projects that require a flexible configuration of circular frameworks, allowing adjustments in both structural floor count and radial dimensions. The model showcases adaptability and precision, which are key in the planning of complex constructions.
3D Grid for Circular Structure
| Block parameters editable dynamically | |
| Number of Nodes | 108 |
| Number of Lines | 192 |
| Number of Members | 0 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Dimensions (Metric) | 18,000 x 8,000 x 18,000 m |
| Dimensions (Imperial) | 59.06 x 26.25 x 59.06 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
