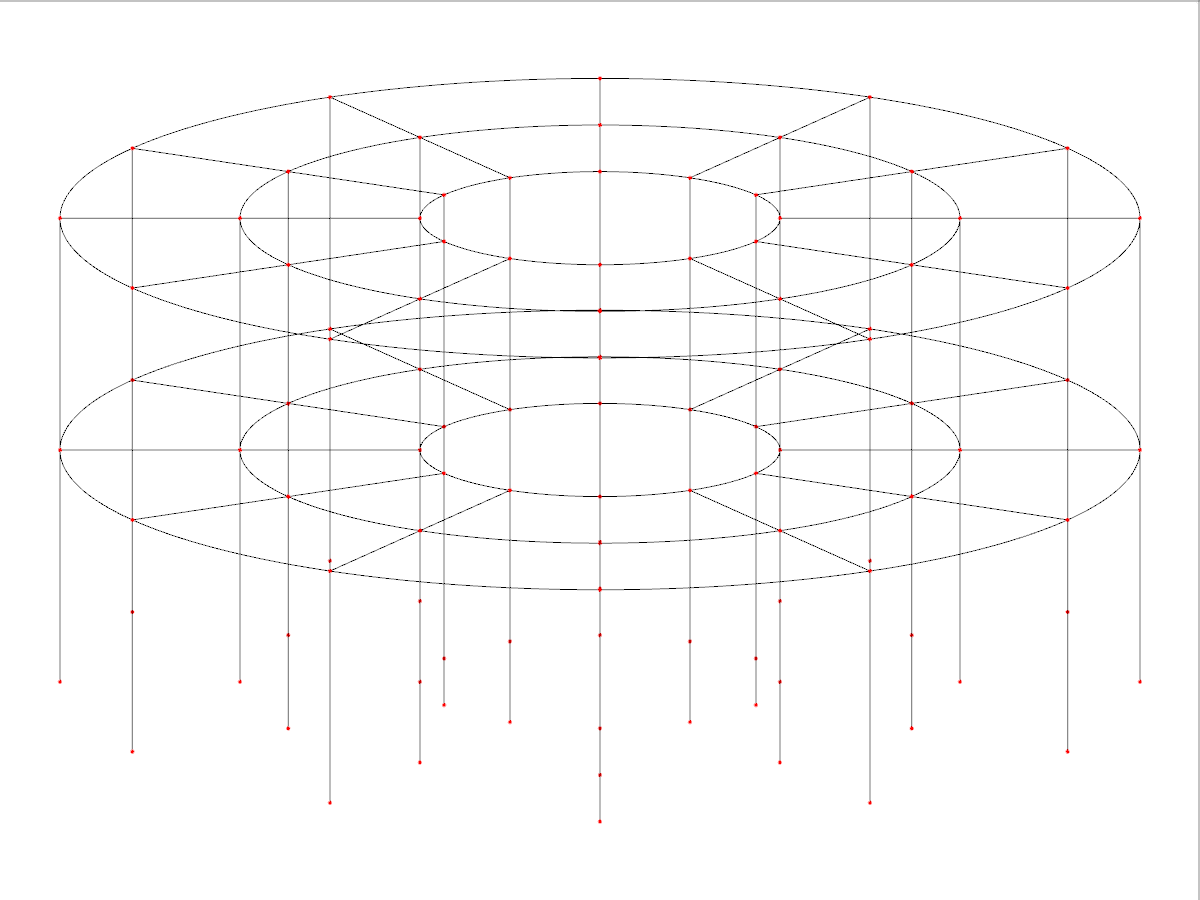

3D Model of Circular Grid Structure
3D grid model showcasing a circular building structure with variable floor levels and row radii, emphasizing architectural design possibilities.
The image depicts a 3D grid model of a circular structure, illustrating the design with different numbers of floors and adjustable row radii. This model highlights the architectural potential for creating complex structures with varying geometric parameters. The setup suggests flexibility in design and optimization for diverse architectural applications.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 108 |
| Number of Lines | 192 |
| Number of Members | 0 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Dimensions (Metric) | 18,000 x 8,000 x 18,000 m |
| Dimensions (Imperial) | 59.06 x 26.25 x 59.06 feet |
