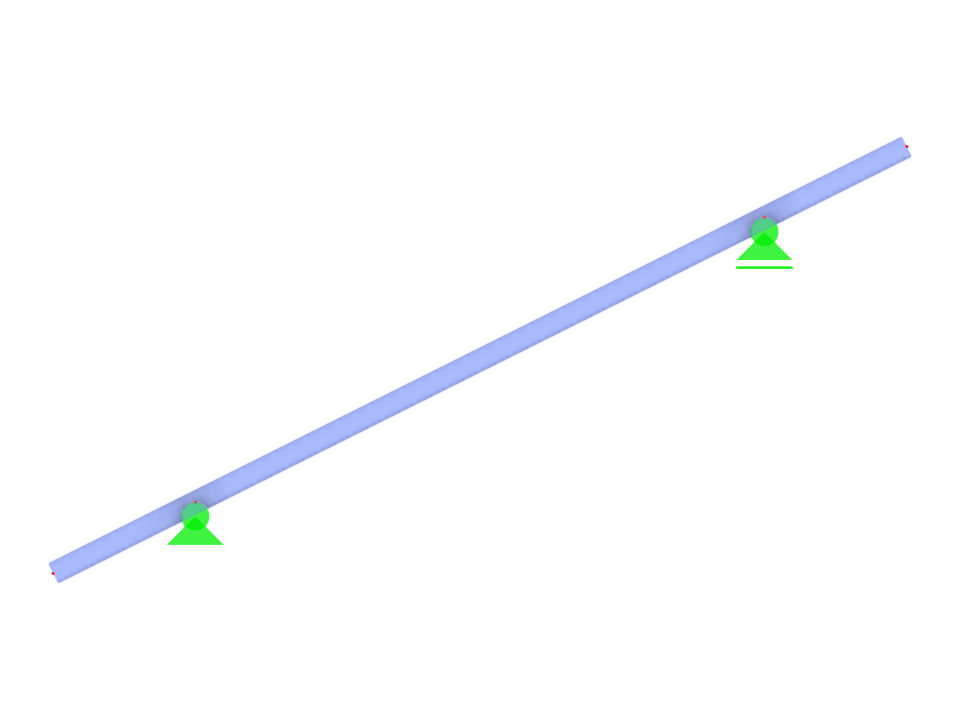

This model features an inclined single beam with overhanging ends subjected to various loadings. This configuration allows for an analysis of structural behavior under different loading conditions, demonstrating the impact of inclination and overhangs on structural performance. Ideal for understanding concepts in structural engineering, the model showcases practical applications of beam mechanics.
Inclined Beam with Overhanging Ends
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.020 tons |
| Dimensions (Metric) | 3.000 x 1.500 x 0.000 m |
| Dimensions (Imperial) | 9.84 x 4.92 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
