Inclined Beam with Overhanging Ends and Loadings

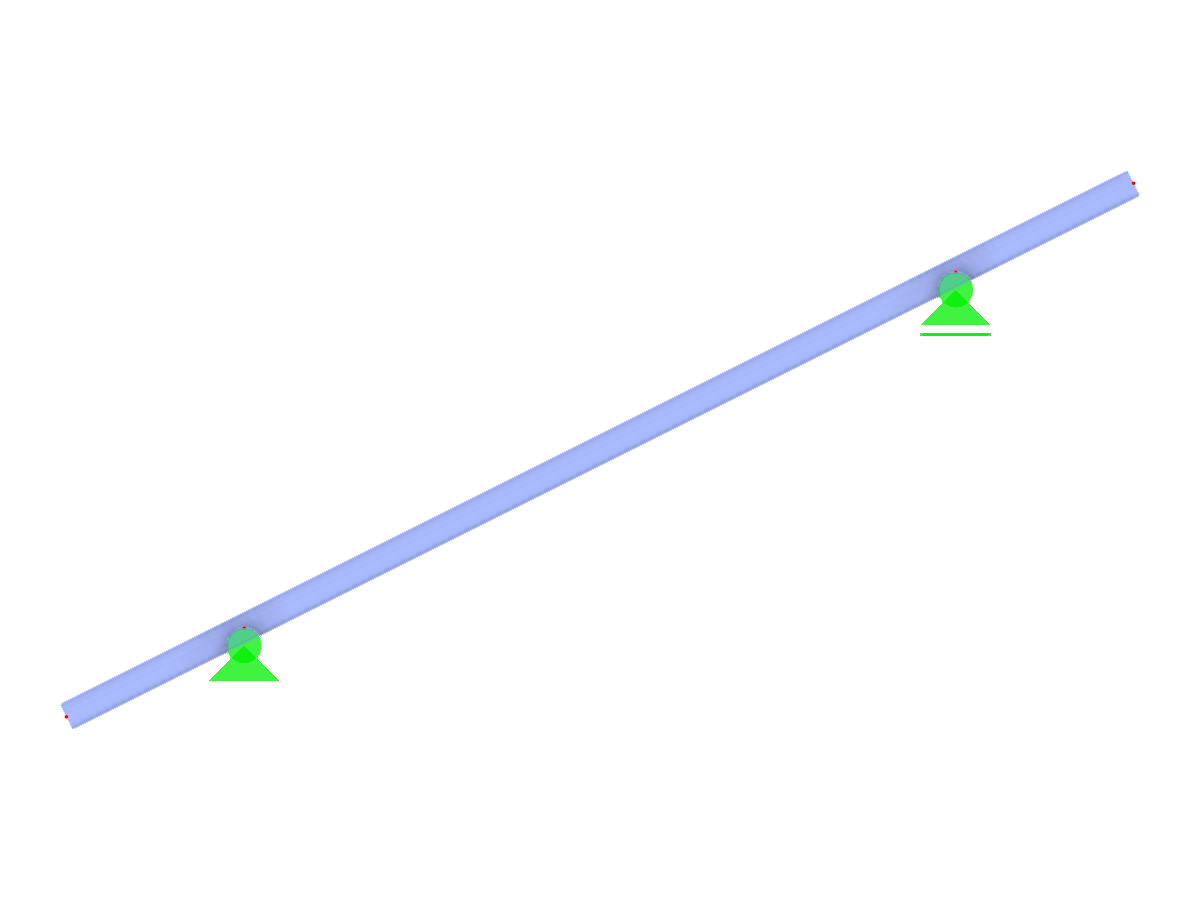

Visualization of an inclined single beam featuring overhanging ends with various loadings applied.
The image depicts an inclined single beam with overhanging ends, showcasing different types of loads applied along its length. The beam demonstrates typical load distribution that is critical in structural engineering analysis, highlighting the effect of overhanging segments on beam performance.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.020 tons |
| Dimensions (Metric) | 3.000 x 1.500 x 0.000 m |
| Dimensions (Imperial) | 9.84 x 4.92 x 0 feet |
