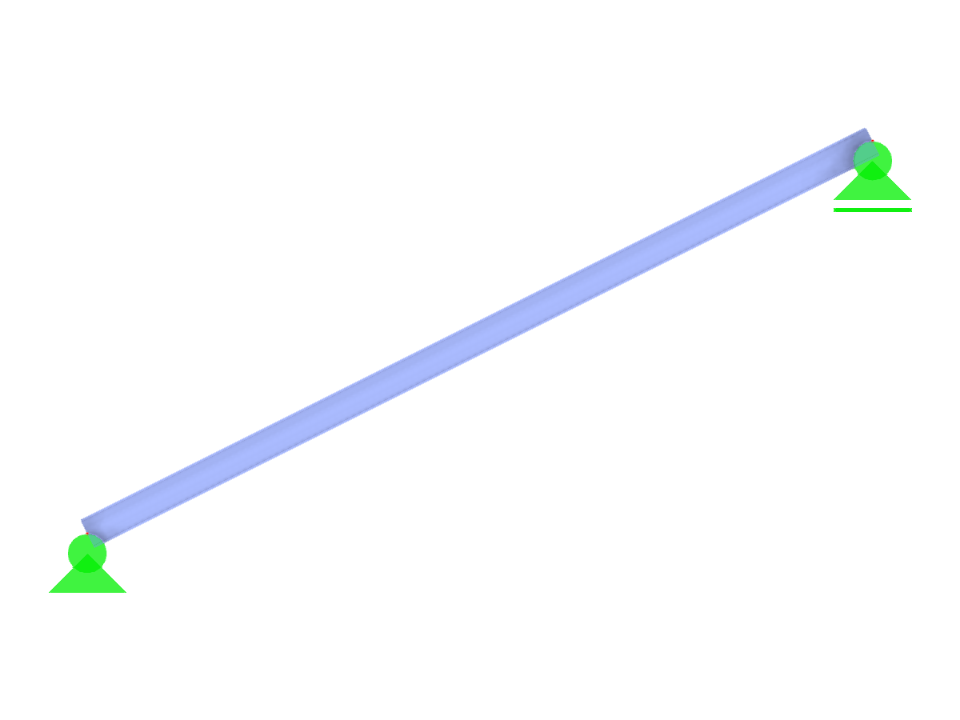

The model features an inclined single beam subjected to various loading conditions, supported at multiple points. This setup is ideal for studying the behavior of beams in inclined positions and analyzing load distribution across different supports. Essential for engineering applications requiring precise structural analysis.
Inclined Single Beam with Supports and Loading
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.013 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
