Inclined Beam with Supports and Loads

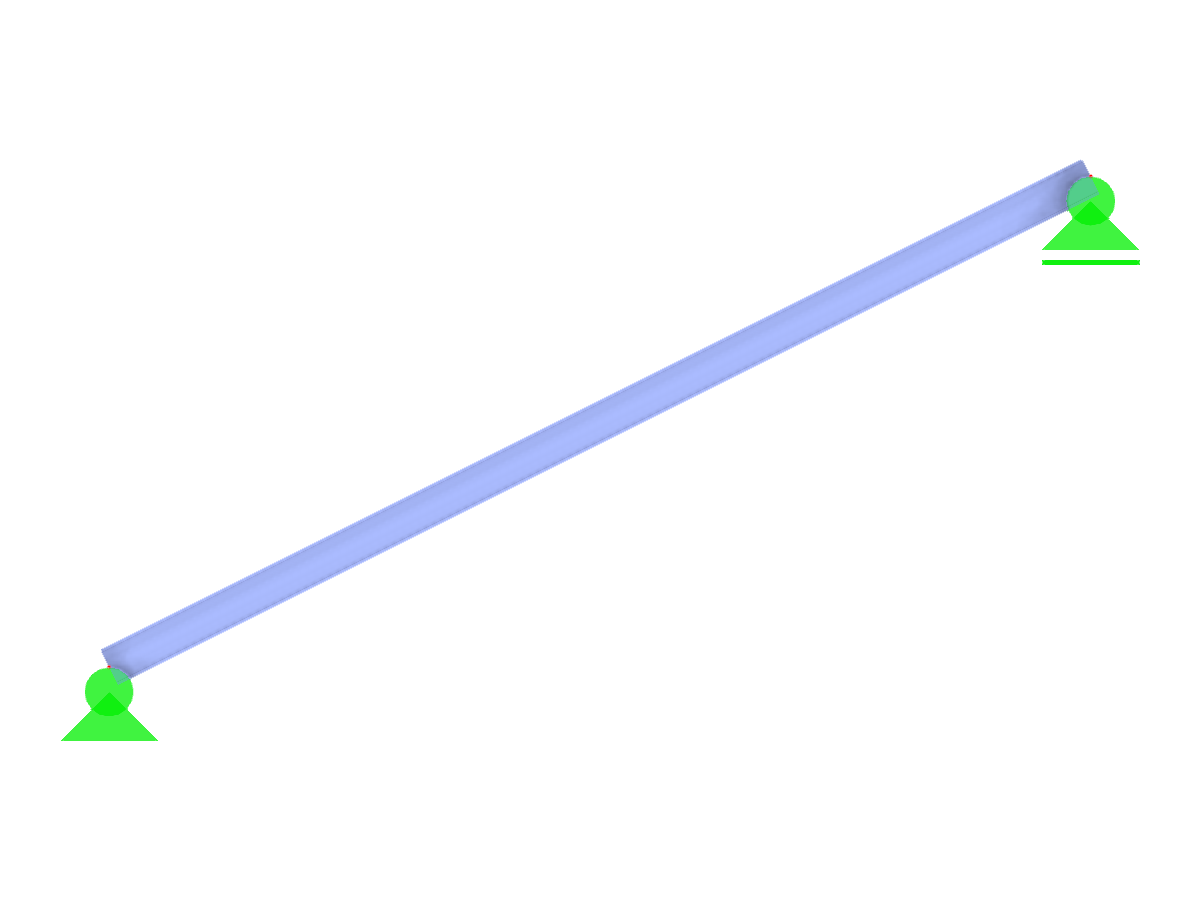

Inclined single beam supported at endpoints with applied loads visualized.
The image displays an inclined single beam supported at both ends with various loads applied. The beam's configuration helps to examine the distribution of forces and reactions in a static system. This type of analysis is valuable in structural engineering to ensure stability and safety.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.013 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
