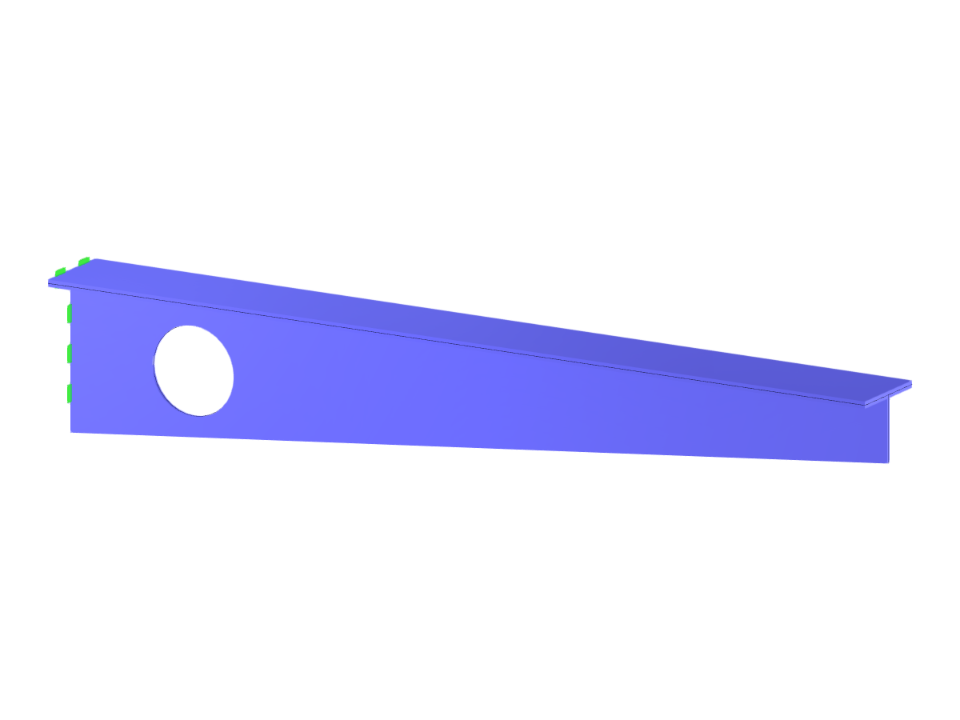

This model depicts a cantilever structure created using surface elements with a T-profile featuring an opening in the web. The design showcases advanced engineering practices through the application of surface modeling techniques in structural analysis, offering insights into material optimization and stability considerations.
Cantilever with T-Profile and Opening
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 11 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.087 tons |
| Dimensions (Metric) | 2,000 x 0,350 x 0,200 m |
| Dimensions (Imperial) | 6.56 x 1.15 x 0.66 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
