Cantilever with Web Opening and T-Profile Surfaces
Cantilever structure with a T-profile featuring an opening in the web, created with surfaces.

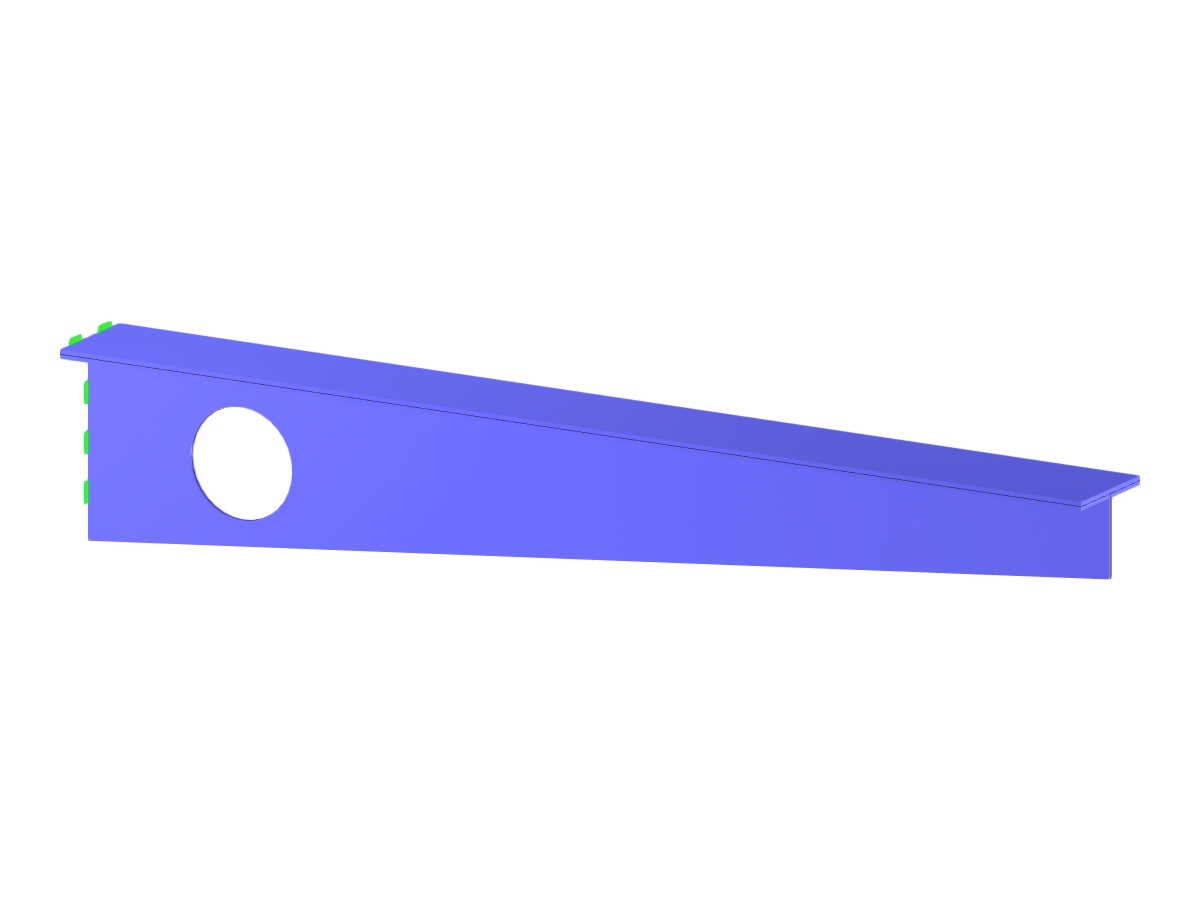

The image depicts a cantilever structure composed of surface elements. It features a T-profile with a distinct opening in the web, showcasing a common design approach for reducing material usage while maintaining structural integrity. This opening may serve functional purposes such as reducing weight or allowing for the passage of utilities.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 11 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.087 tons |
| Dimensions (Metric) | 2,000 x 0,350 x 0,200 m |
| Dimensions (Imperial) | 6.56 x 1.15 x 0.66 feet |
