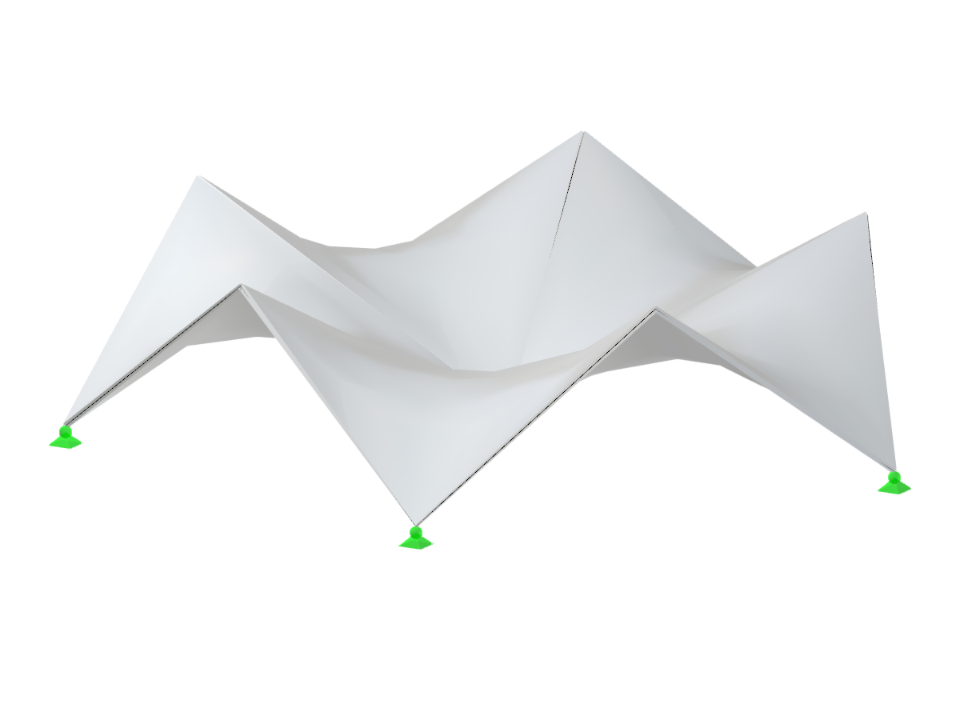

This model demonstrates the design of anticlastic shells, allowing adjustments based on the number of sides (five or more), the length, and the height. Anticlastic shells are characterized by having double curvature with opposing curvatures in two perpendicular directions, creating a saddle shape. Such designs are often used in modern architecture for aesthetic and functional purposes. The model provides a detailed approach for engineers to input specific dimensions and observe structural behavior under defined parameters.
Anticlastic Shell Design with Variable Geometry
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 15 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.034 tons |
| Dimensions (Metric) | 12.311 x 3.000 x 12.944 m |
| Dimensions (Imperial) | 40.39 x 9.84 x 42.47 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
