Anticlastic Shell Design Details

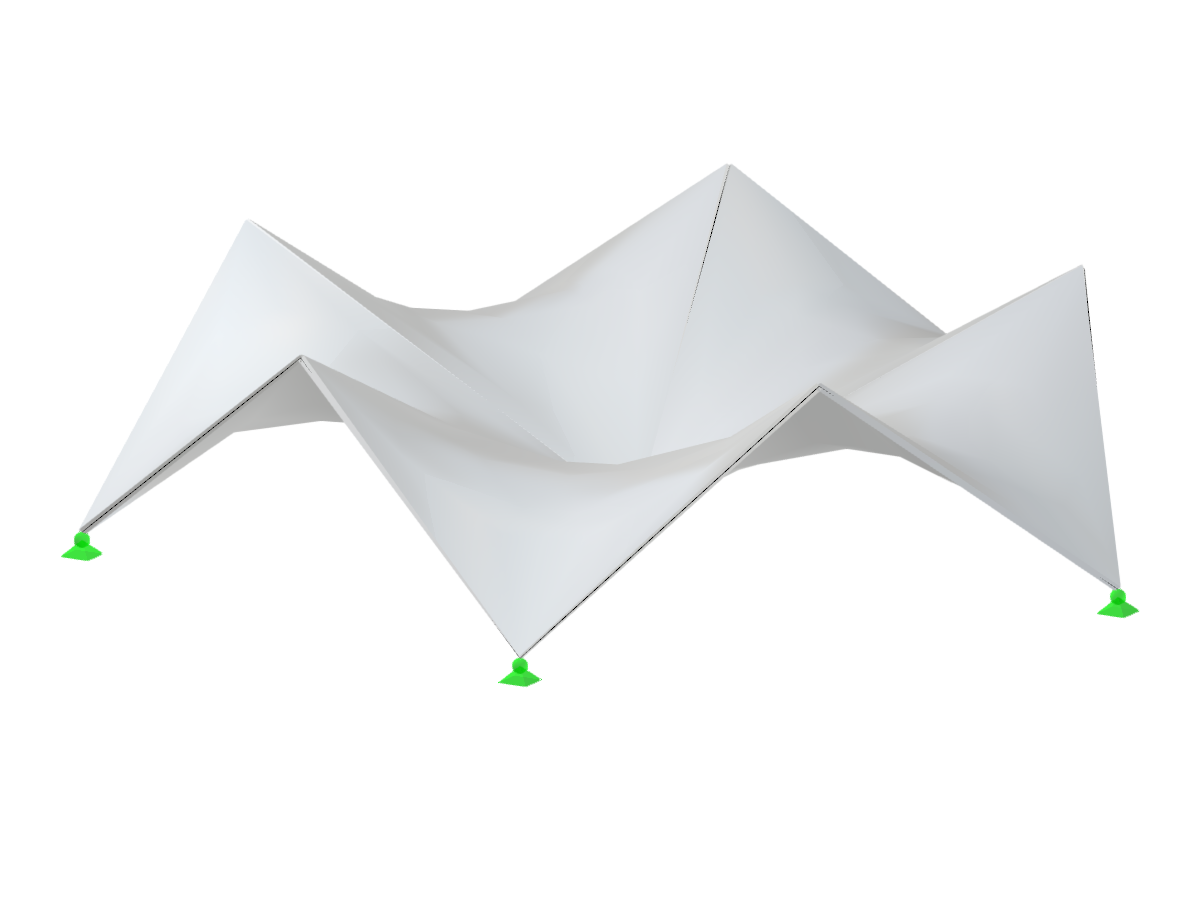

Illustration of anticlastic shell structure with parameters like number of sides, length, and height.
This image presents the design input parameters for anticlastic shells, including the number of sides, which is five or more, as well as the length and height of the shell.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 11 |
| Number of Lines | 15 |
| Number of Members | 0 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.034 tons |
| Dimensions (Metric) | 12.311 x 3.000 x 12.944 m |
| Dimensions (Imperial) | 40.39 x 9.84 x 42.47 feet |
