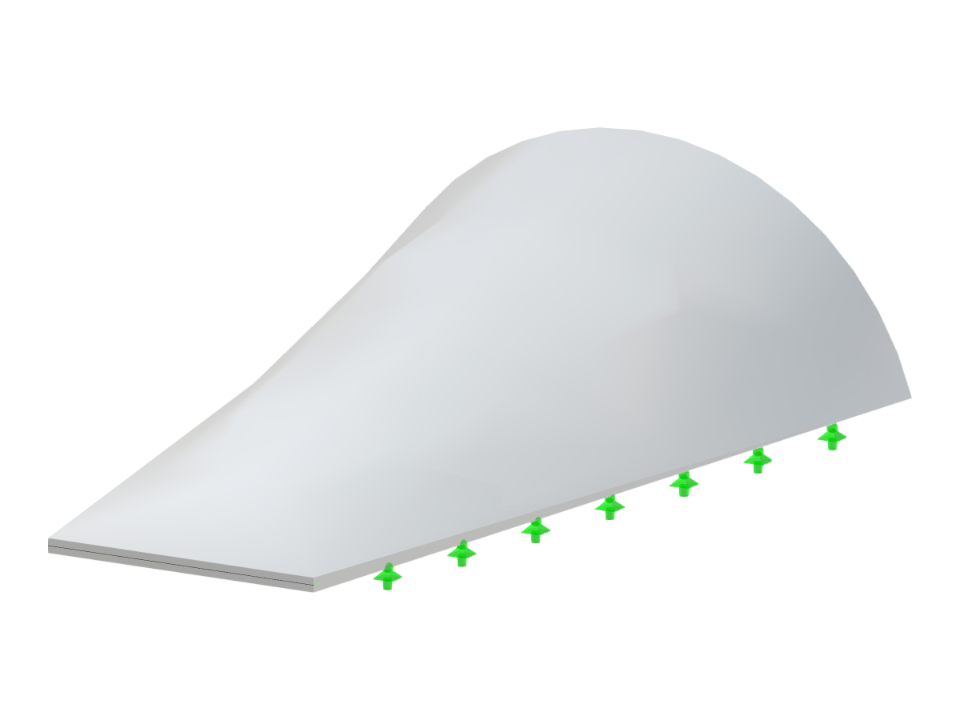

This model features a barrel vault with a semi-cylindrical shape and variable radius at the ends. The geometry is defined via height and radius, allowing for a flexible architectural design. Such structures are employed for large spans due to their aesthetic appeal and structural efficiency. The model is particularly useful for exploring complex vault geometries in structural analysis.
Barrel Vault with Variable Radius Geometry
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.421 tons |
| Dimensions (Metric) | 4.000 x 1.500 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 4.92 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
