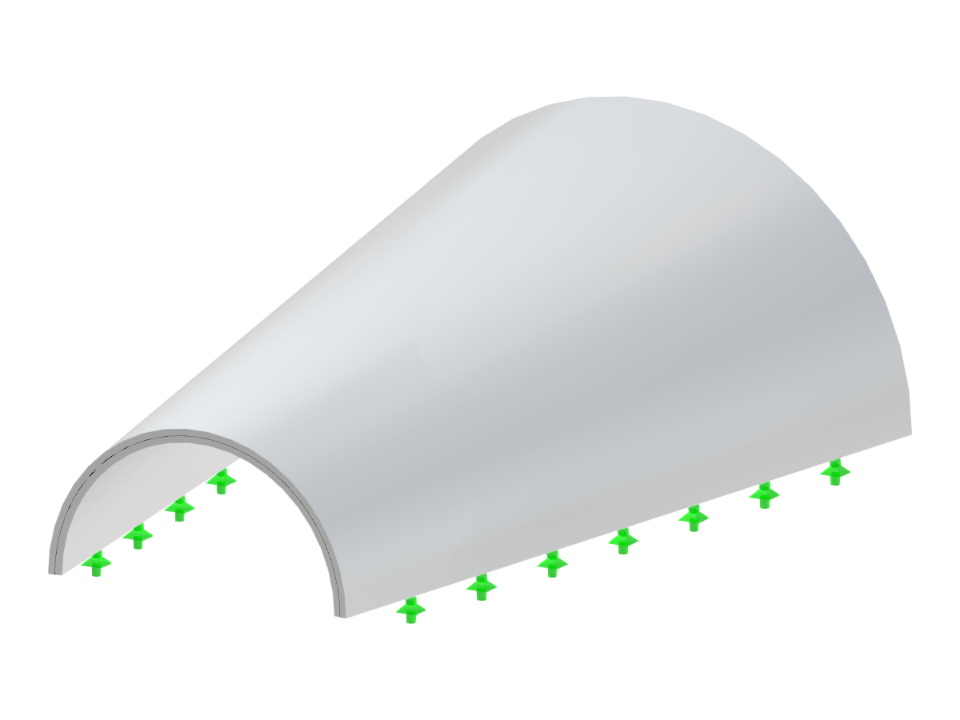

This model showcases a barrel vault structure featuring a half-cylindrical shape with a varying radius at the ends. The geometry is defined by the height and radius, allowing for an efficient, arch-like design suitable for various applications. Such structures are commonly used in architectural elements to provide both aesthetic appeal and structural functionality.
Barrel Vault with Variable Radius
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 7.386 tons |
| Dimensions (Metric) | 4.000 x 2.000 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 6.56 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
