Barrel Vault with Variable Radius Geometry

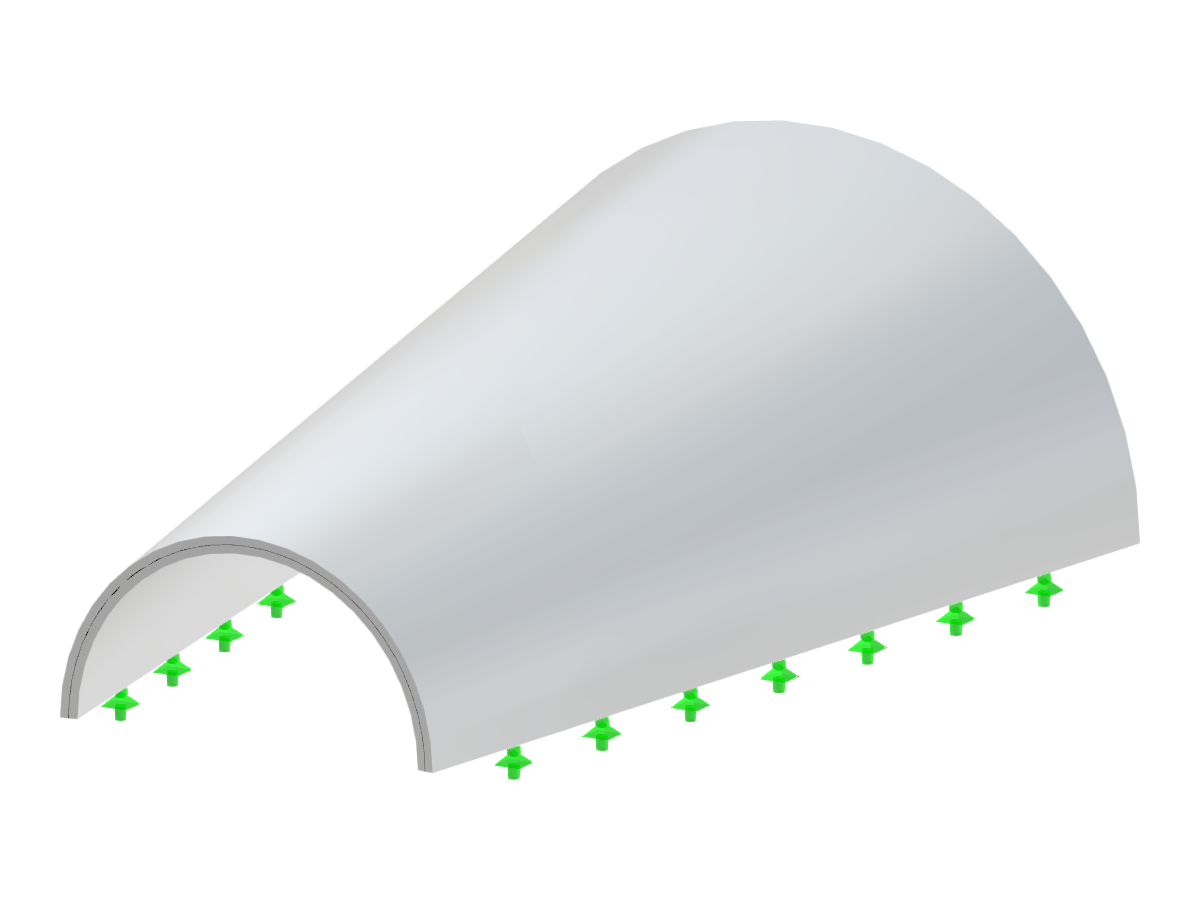

Barrel vault structure showing a half-cylindrical shape with varying radii at the ends, utilizing height and radius for its design.
The image showcases a barrel vault with a half-cylindrical form, designed with a variable radius at its ends. The structure's geometry is defined by its height and radius. This type of design illustrates advanced techniques in creating curved architectural elements in structural engineering.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 7.386 tons |
| Dimensions (Metric) | 4.000 x 2.000 x 6.000 m |
| Dimensions (Imperial) | 13.12 x 6.56 x 19.69 feet |
