028310
2025-12-10

Offset for Cladding

The first sheathing in each case can only be provided with an offset. This means that the panel grid can start with any plate strip. The shear panel is defined in combination with the offset of the inner studs.

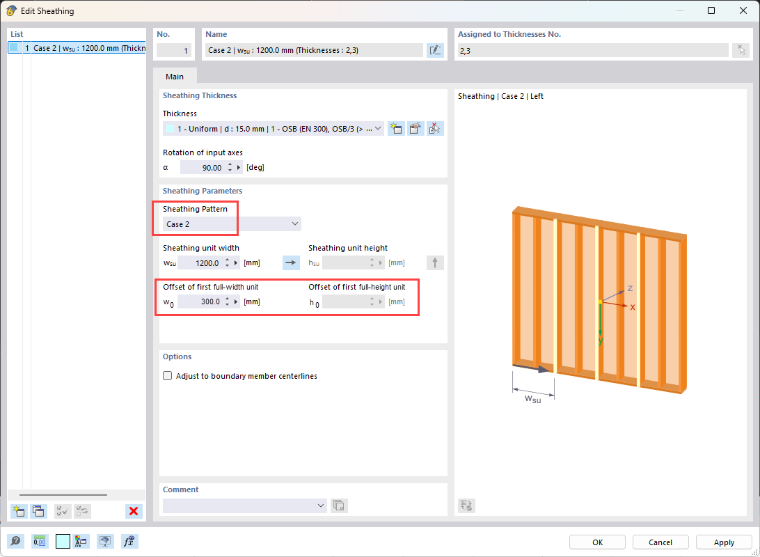

Window showing sheathing settings in a case model with material specifications and parameters for structural analysis.
01 Edit Sheathing Configuration in Model Analysis

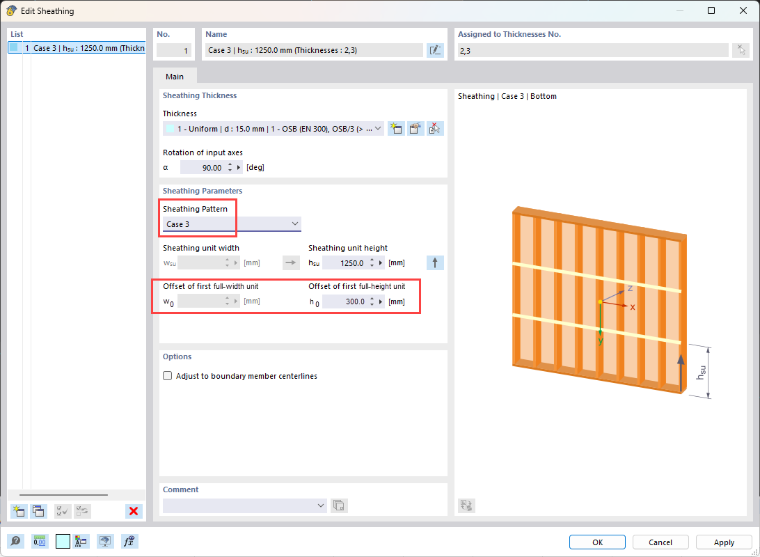

An analysis case displaying sheathing details for structural assessment.
02 Edit Sheathing in Structural Analysis Case

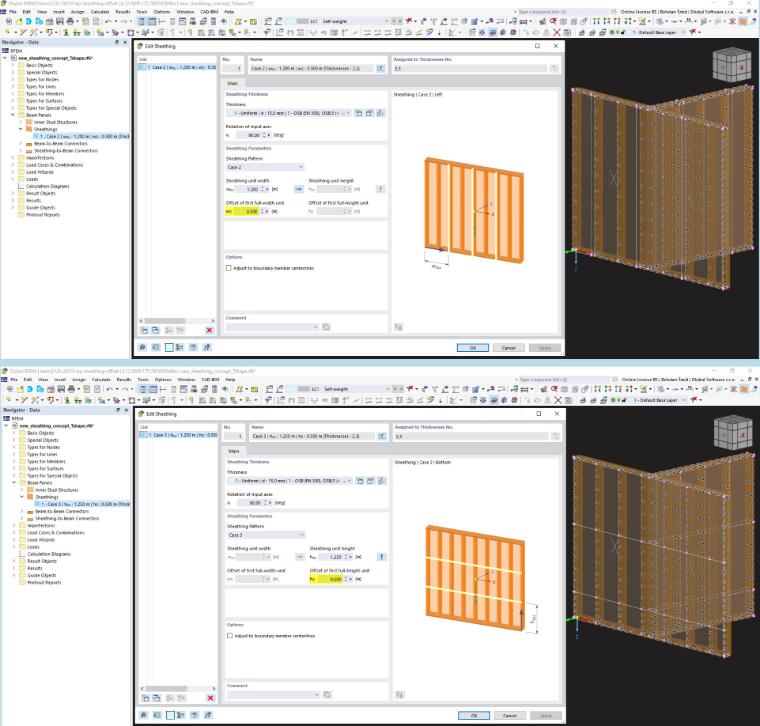

View of sheathing options showing variable parameters wO and hO for detailed analysis.
03 Edit Sheathing Dimensions Analysis and Adjustment
;
