No Calculation Possible for Design Situation

Why are there no results displayed for the “Seismic” design situation in the concrete design?


Answer:

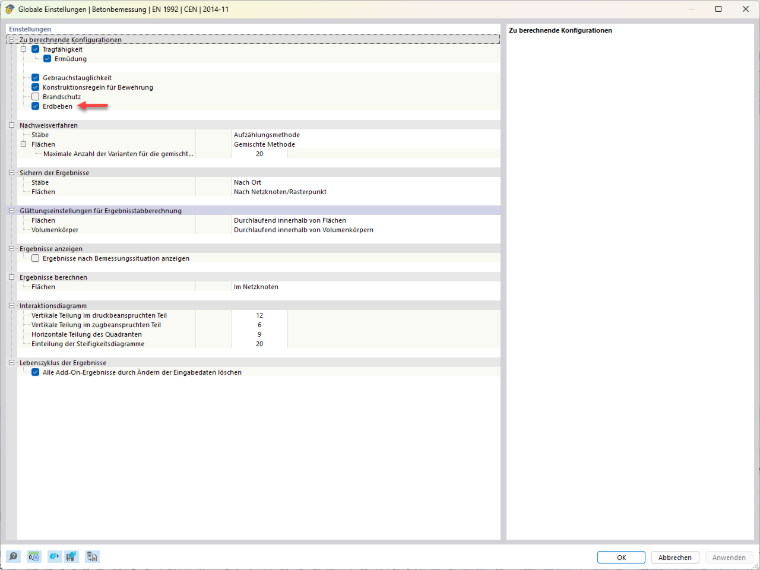

Check the Global Settings for concrete design. This is where you specify which design configurations are to be analyzed.

When performing design according to EN 1992-1-1, the ultimate and serviceability limit states are activated by default. For design situations involving seismic action, it is necessary to activate the corresponding configuration.

If this option is disabled, no results of the concrete design will be generated for the respective design situation.
