Different Stresses in Static Analysis and Stress-Strain Analysis

Why are the stresses of the structural analysis different from those calculated with the Stress-Strain Analysis add-on?

Answer:

The most likely cause of the different results is that you have probably not set the same smoothing of the surface internal forces.

FAQ 005531 | Why are the stresses of the structural analysis different from those calculated with the Stress-Strain Analysis add-on?

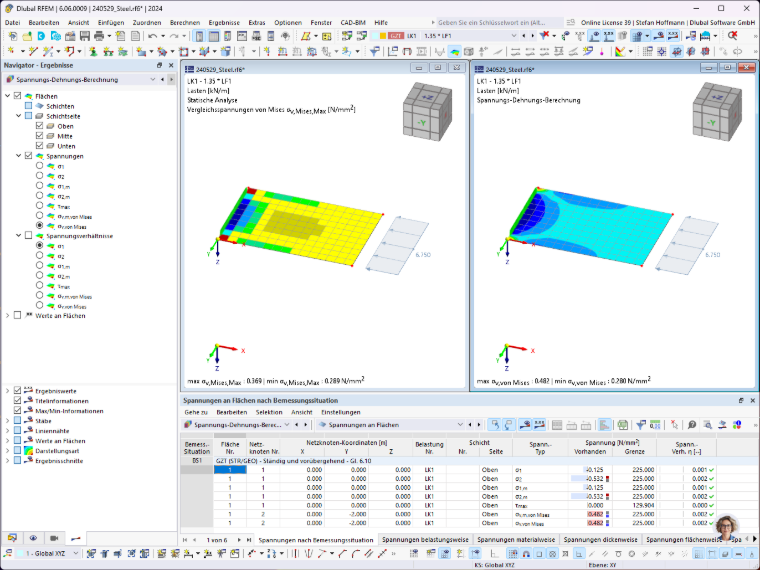

FAQ 005531 | Difference of Stresses in Static Analysis and Stress-Strain Analysis

This can be set separately in RFEM 6 and in the add-on.

If the smoothing is the same in both settings, the stresses are also the same.

FAQ 005531 | Why are the stresses of the structural analysis different from those calculated with the Stress-Strain Analysis add-on?

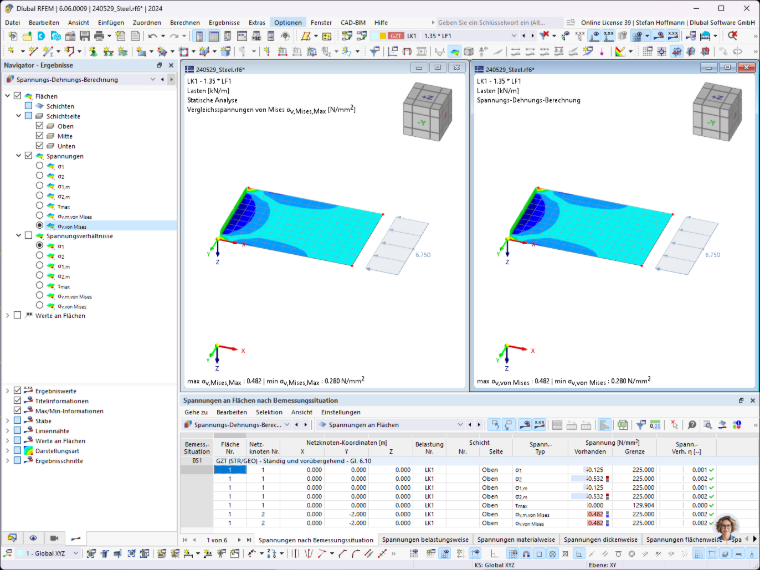

FAQ 005531 | Equal Stresses in Structural Analysis and Stress-Strain Analysis
