Welds in RFEM 6

In the case of stairs with a complicated geometry, it is often difficult to design welds by using the analytical methods. How can I do this with RFEM 6?

Answer:

Where the geometries become complicated, it is difficult to use analytical methods for the design. The weld elements in RFEM 6 are particularly helpful for such applications.

RFEM 6 allows for design checks for different types of welds.

In the Joint type list, you can select how the surfaces to be connected are related to each other.

FAQ 005287 | In the case of stairs with a complicated geometry, it is often difficult to design welds by using the analytical methods. How can I...

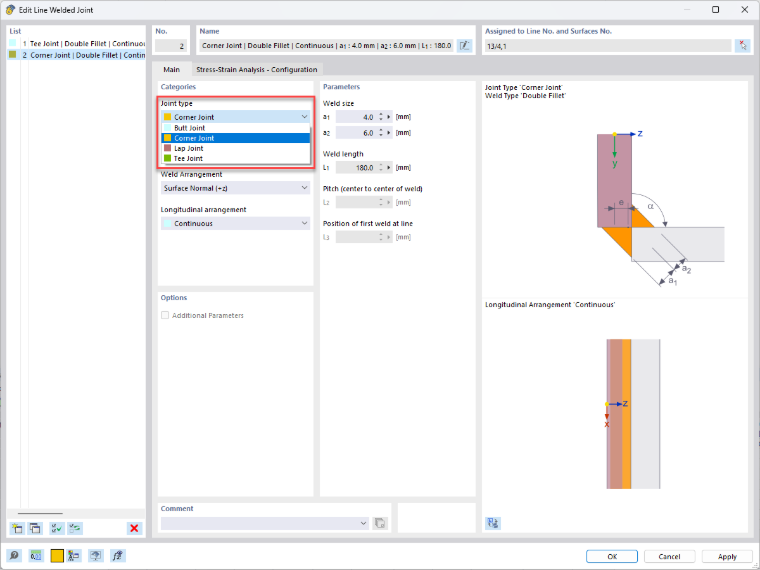

FAQ 005287 | Welds in RFEM 6 | Position of Surfaces to Be Connected to Each Other

Then, select a weld type.

FAQ 005287 | In the case of stairs with a complicated geometry, it is often difficult to design welds by using the analytical methods. How can I...

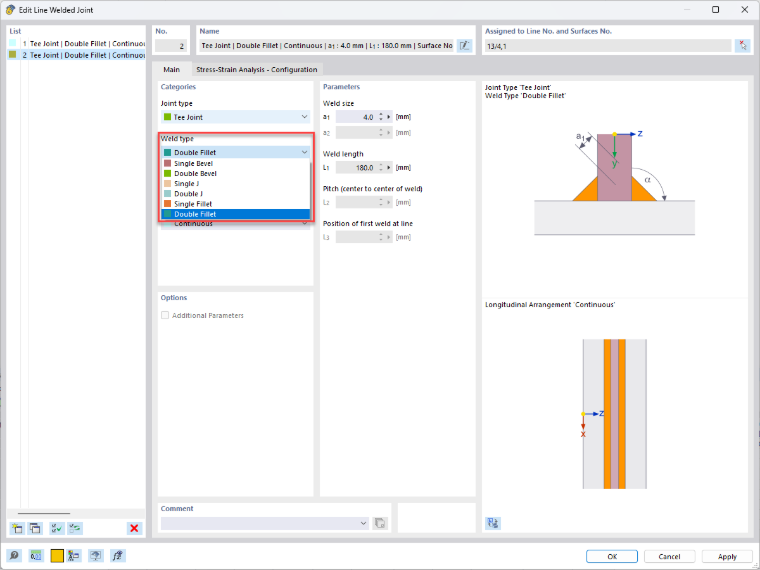

FAQ 005287 | Welds in RFEM 6 | Weld Type

Finally, it is necessary to define the weld parameters.

The welds do not affect the stiffness of the model. You use the stresses from the surface elements and evaluate them according to the regulations.
