Answer:

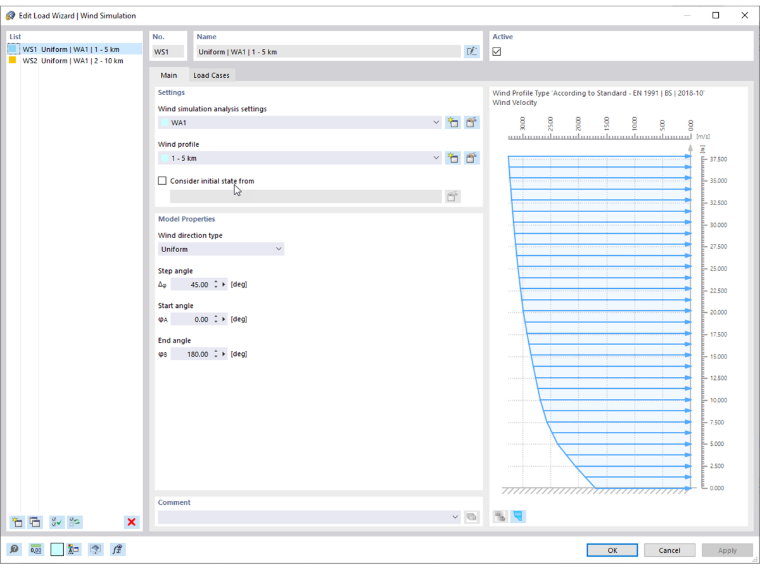

The load wizard "Wind Simulations" integrated in the program provides support for generating wind simulation load cases. The wizard generates a wind simulation load case with a complete model input for user-defined angle settings for the RWIND calculation in the background.
If you want to apply a different wind profile, depending on the angle, the wizard allows for several entries. To do this, proceed as follows:
- Open the Wind Simulation Load Wizard.
- In the first entry, define a wind profile to be considered for a specific angular position segment.
- Generate another entry with another wind profile for the corresponding angular position segment.
- Repeat Step 3 until all segments are covered.
