Answer:
This is probably due to the size of the FE elements you have defined.

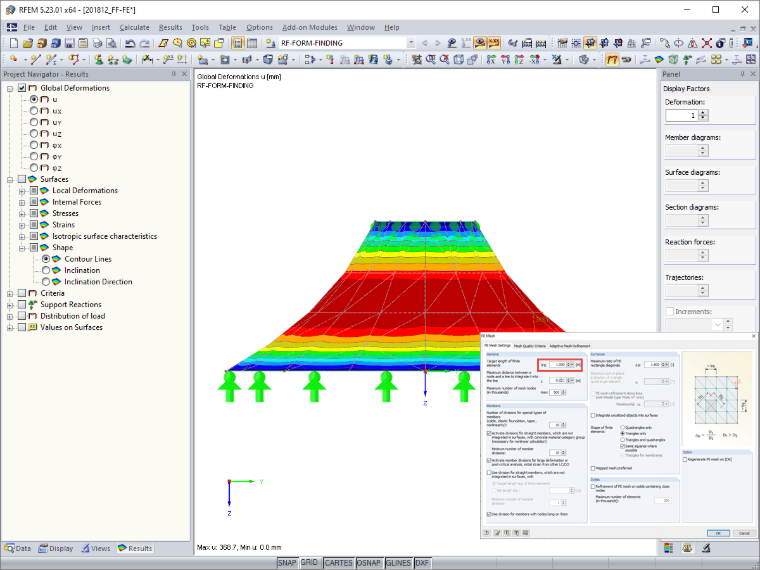

For a rough FE mesh of 1 m, the shape looks angular.

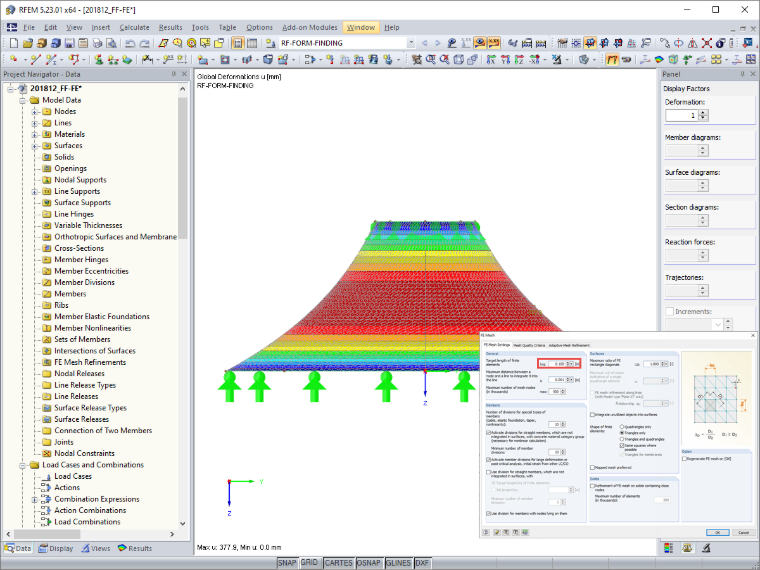

For a fine FE mesh of 0.1 m, the shape looks smoother.
FE Mesh of Conical Membrane
Why does the FE mesh of my conical membrane look angular after the form-finding?
