Export of Results from RF-DYNAM via RF-COM Interface

What results can I export from the RF‑DYNAM Pro add‑on module using the RF‑COM Interface ?

Answer:

The RF‑/DYNAM Pro add-on module allows you to exchange the following results via the RF‑COM/RS‑COM interface:

  • Eigenvalue
  • Nodal deformations (Table 5.20)
  • Member deformations
  • Surface deformations (RFEM)
  • Nodal masses
  • Effective Modal Mass Factor

Furthermore, the resulting internal forces, deformations, and support reactions of the equivalent load cases can be displayed via the RFEM/RSTAB interface. There are help files available for each of these output options. These files are described in this article:

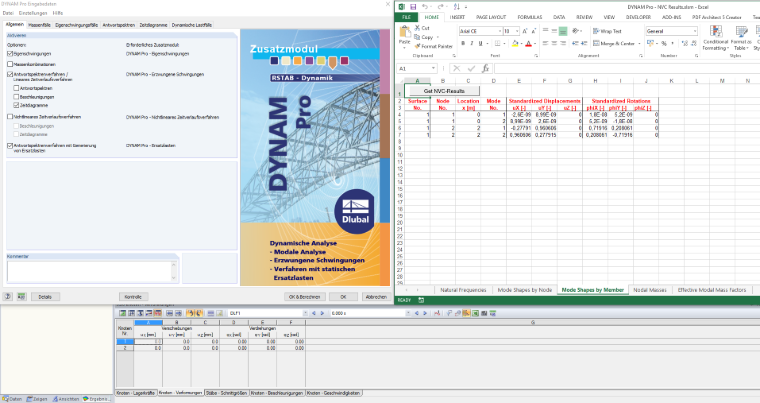

Exporting Results from DYNAM Pro via COM Interface
Exporting Results from DYNAM Pro via COM Interface

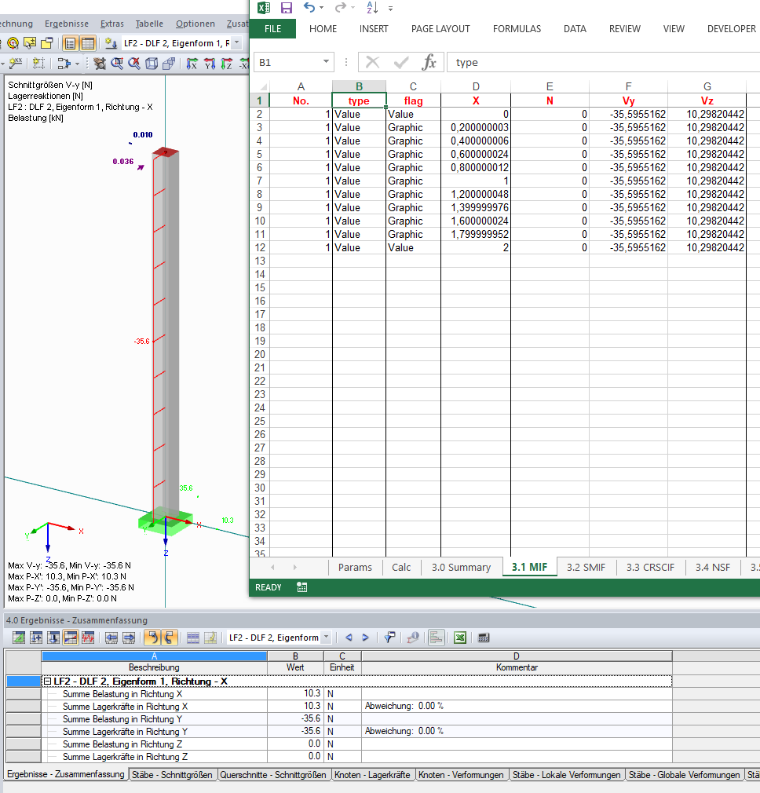

Internal Forces and Moments from Equivalent Loads
Internal Forces and Moments from Equivalent Loads
