Not Considered Members in Load Generation

Some members are not considered for the load generation. What can be the cause?


Answer:

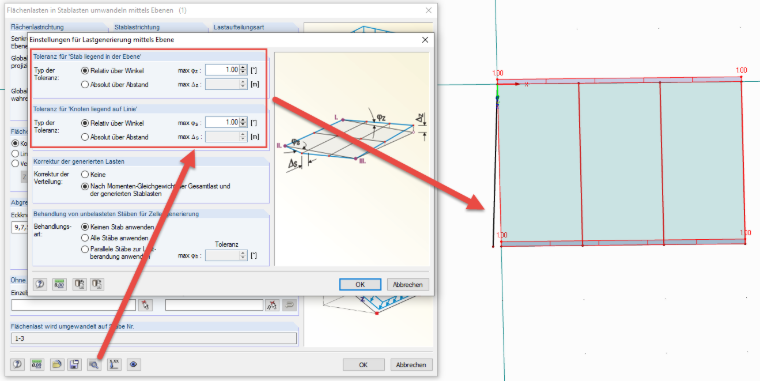

In most cases, tolerances are insufficiently defined in the settings for the load generation (see Image 01). The corresponding members can be recognized very quickly because they are not selected by default in the preview of the load plane with the selected members. The reason for this is that the affected members rest outside the plane. Therefore, it is necessary to adjust the tolerance settings of the surface load plane.


Author

Mr. Baumgärtel provides technical support for Dlubal Software customers.
