Download here a model of a steel frame made of RSECTION cross-sections, consisting of a tube and four stiffeners, with connection components defined at the top and bottom of the columns. Open the file using the RFEM 6 finite element program.

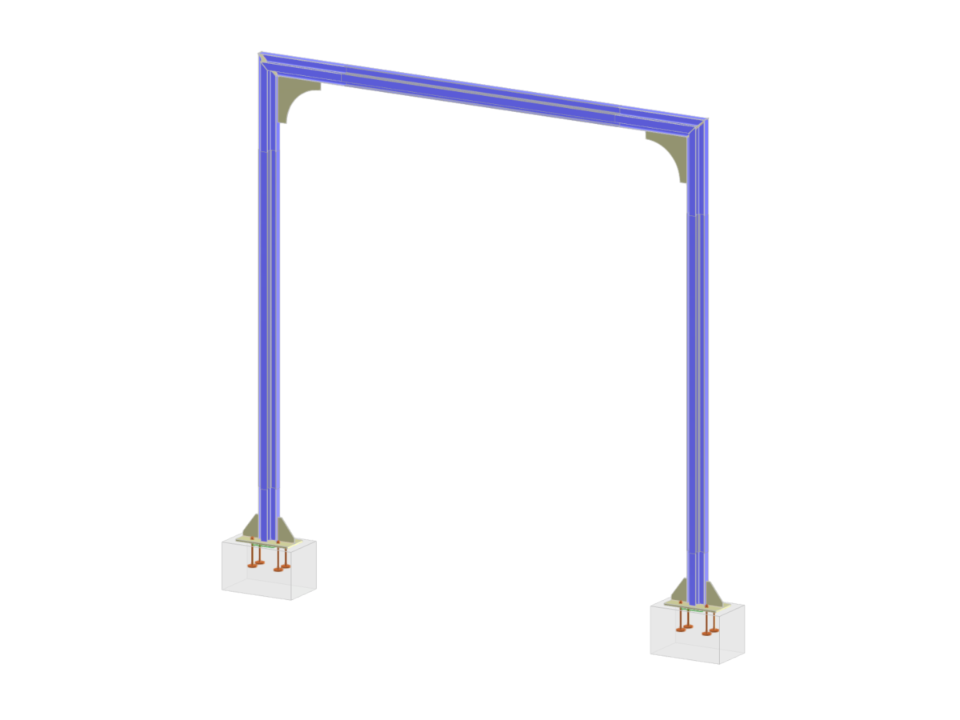

Steel Frame with RSECTION Cross-Section (Tube + 4 Stiffeners)
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.446 t |
| Dimensions (Metric) | 5.000 x 5.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 16.4 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
