A parameterized trivial model designed to analyze the effects of friction contacts. It consists of three approximately rigid single-element surfaces connected by surface contacts and rigid friction. The outer surfaces are supported without constraints, simplified as much as possible, and the middle surface is subjected to incremental loading that is controlled horizontally, either by force or by displacement. For the force-controlled analysis, a stop is also added starting at 0.0001 mm of deformation.

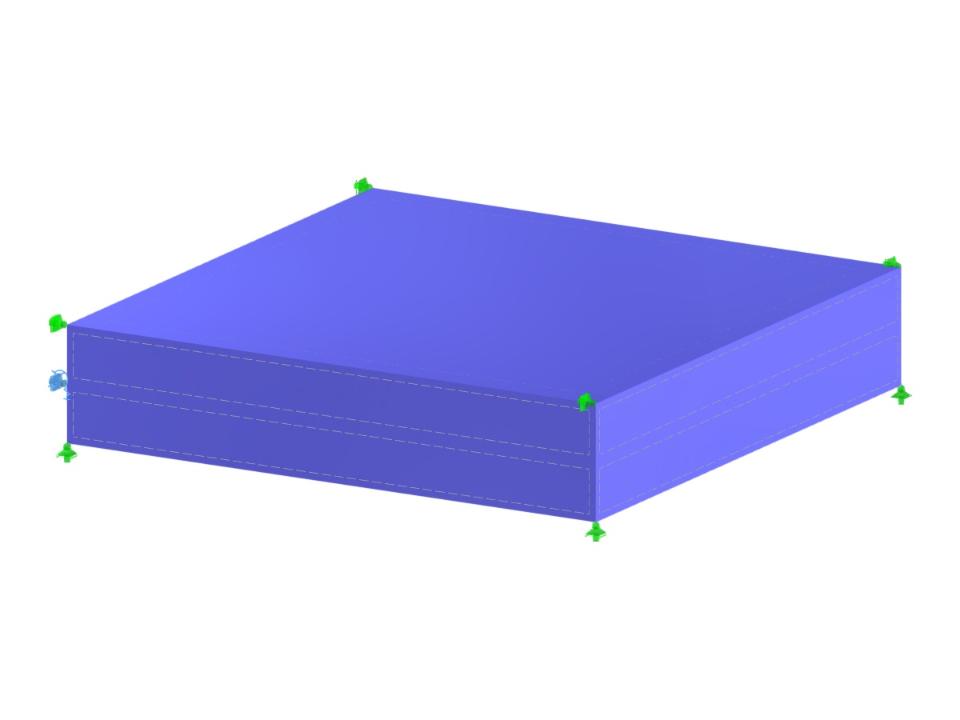

FAQ 5850 | Trivial Model of Contact Solid
| Number of Nodes | 12 |
| Number of Lines | 20 |
| Number of Members | 0 |
| Number of Surfaces | 11 |
| Number of Solids | 2 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Dimensions (Metric) | 1.000 x 0.200 x 1.000 m |
| Dimensions (Imperial) | 3.28 x 0.66 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
