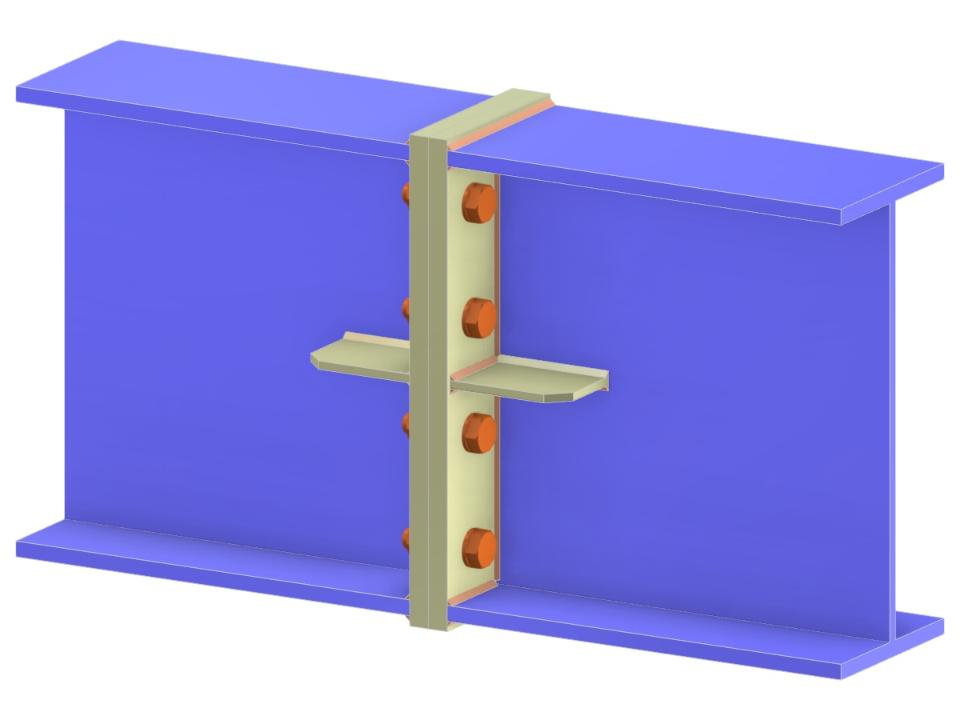

This model demonstrates a beam splice featuring full-depth end plates and a rib with bolted, rigid connections designed for I-profiles with identical cross-sections. It highlights the precision required for ensuring a robust structural joint. Such connections are crucial for distributing loads effectively across beam sections while maintaining structural integrity.
Beam Splice via Full-Depth End Plate to Plate and Rib
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 1 |
| Total Weight | 0.155 tons |
| Dimensions (Metric) | 2.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
