This structural model demonstrates the connection of a purlin to a roof beam using an unequal angle with bolted joints. The design focuses on achieving a stable and reliable roof structure connection. Unequal angles provide the necessary support, ensuring load distribution across the purlin and beam. This configuration minimizes construction complexity while optimizing material usage. Ideal for architects and engineers looking for efficient solutions in roof construction.

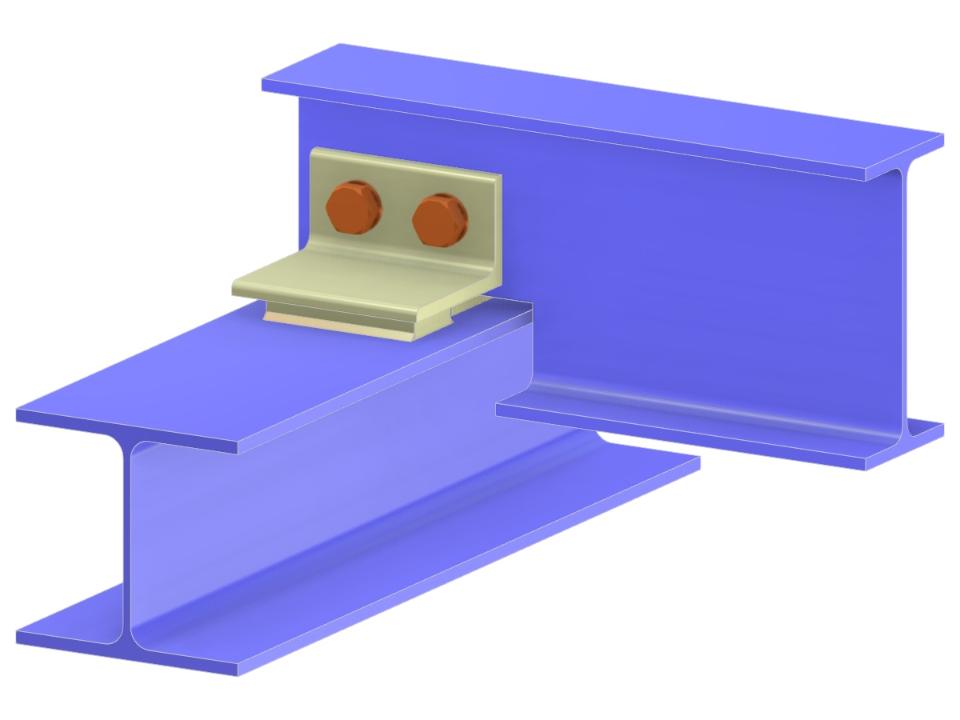

Purlin to Roof Beam Connection via Unequal Angle and Seating Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.097 tons |
| Dimensions (Metric) | 1.000 x 0.000 x 2.000 m |
| Dimensions (Imperial) | 3.28 x 0 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
