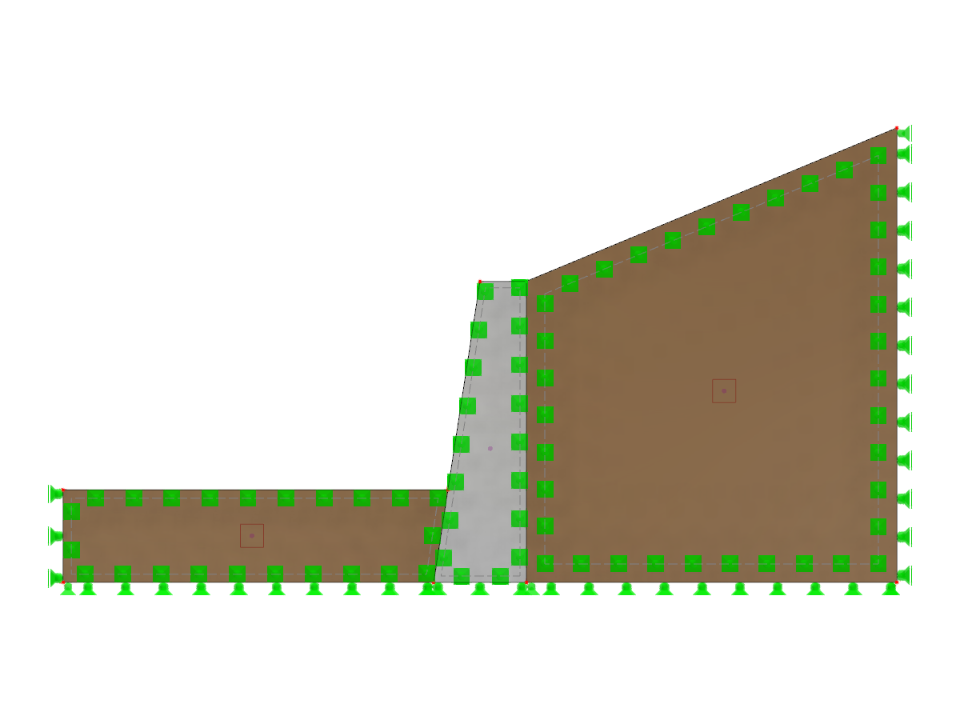

Solid model of a gravity retaining wall with sloped soil behind and in front of the structure. The model is defined with parametric dimensions, allowing flexible adaptation of the wall geometry and soil layers. It is suitable for geotechnical analysis and structural evaluation of retaining wall stability.
Gravity Retaining Wall with Sloped Soil
| Block parameters editable dynamically | |
| Number of Nodes | 18 |
| Number of Lines | 31 |
| Number of Members | 0 |
| Number of Surfaces | 17 |
| Number of Solids | 3 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 189.131 tons |
| Dimensions (Metric) | 18.000 x 9.814 x 1.000 m |
| Dimensions (Imperial) | 59.06 x 32.2 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
